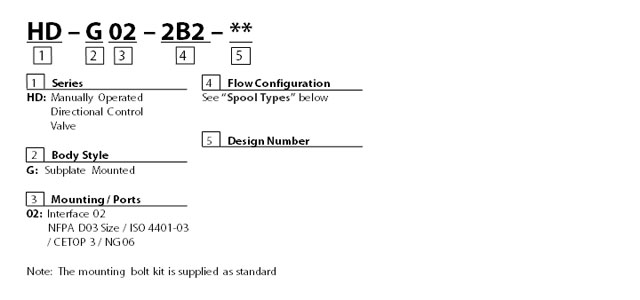

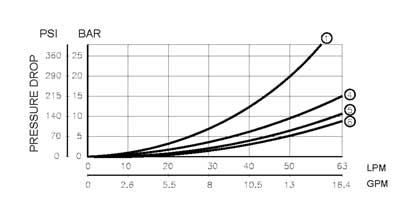

HD-G02 MANUALLY OPERATED DIRECTIONAL VALVE This industrial hydraulic four-way valve is actuated manually with the hand-lever. It may be ordered as a 2-position or a 3-position valve. Other options include a spring-offset design, or spring-centered or detented. The valve mounts on the M02 Subplate series. Note: Modular pressure and flow control valves in the M**-02 series that mount under this directional control are available separately to make a convenient control valve package.       Quick Links Model Code Specifications Dimensions     Model Code - top   SPECIFICATIONS - top MODEL CODE MAX. FLOW MAX. PRESSURE   LPM (GPM) BAR (PSI) HD-G02-***-10 63(16.6) 207 (3000) SPOOL TYPES - top HD Series Manually-Operated Directional Control Valves Valve Type Spool Symbol 4 Way 3 Position Spring Centered 3C2 3C3 3C4 3C6 4-Way  2-Position  Spring Offset  2B2 Closed Crossover 2B3 Open Crossover  4 Way 3 Position Detent 3D2   3D3 3D4  3D6 4 Way 2 Position Detent  2D2 Closed Crossover  2D3 Open Crossover Pressure Drop and Performance Curves - top     TEST FLUID VISCOSITY : 35 cSt (175 SSU) TEST TEMPERATURE: 50C(122F) MODEL NO : PRESSURE   DROP CURVE NUMBER P-A B-T P-B A-T P-T C2 5 5 5 5  - C4 5 6 5 6  - C6 1 1 1 1 4 B2 4 5 4 5  - Dimensions - top UNIT: mm(inch) ISO 4401-AB-03-4-A HD-G02-***-**
