SOLENOID OPERATED DIRECTIONAL VALVE M02 SUBPLATE



This single-station subplate for mounting an industrial hydraulic directional control valve conforms to the National Fluid Power Association (NFPA) D03 mounting pattern. It accepts Northman valves in the SWH-G02 and HD-G02 Series. NPT and SAE Ports are available on the side or the bottom for Pressure, Tank, A and B connections.















  Quick Links
Model Code
Dimensions

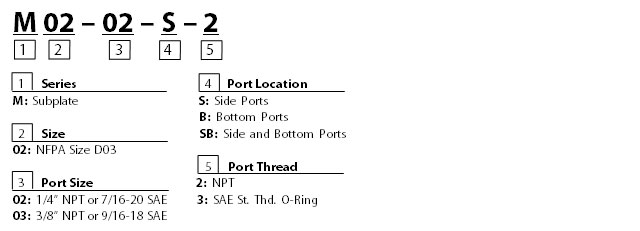

Model Code -
top

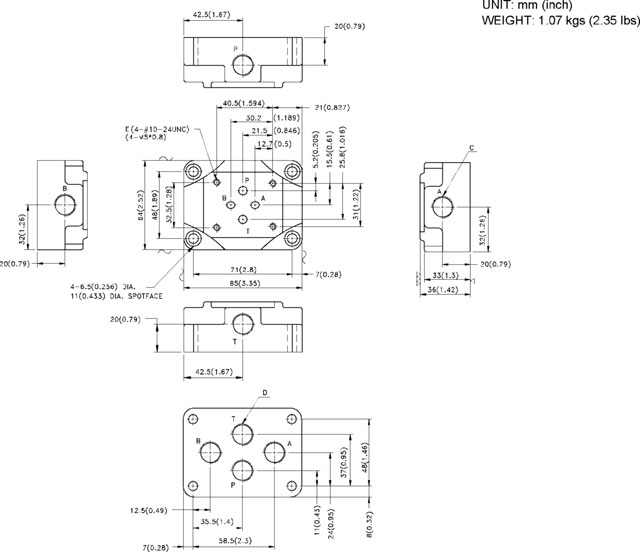

Dimensions - top




Dimensions- top


MODEL   PORT SIZE   MODEL   PORT SIZE
C D E C D E
M02-02 - S -2 1/4" NPT - 10-24UNC M02-03 - S -2 3/8" NPT - 10-24UNC
-3 7/16-20 SAE - 10-24UNC -3 9/16-18 SAE - 10-24UNC
- B -2 - 1/4" NPT 10-24UNC - B -2 - 3/8" NPT 10-24UNC
  -3 - 7/16-20 SAE 10-24UNC   -3 - 9/16-18 SAE 10-24UNC
- SB -2 1/4" NPT 1/4" NPT 10-24UNC - SB -2 3/8" NPT 3/8" NPT 10-24UNC
  -3 7/16-20 SAE 7/16-20 SAE 10-24UNC   -3 9/16-18 SAE 9/16-18 SAE 10-24UNC
