Single Fixed Displacement

V20

The Northman V20 Series pump is a fixed displacement, balanced vane pump. Available flow ratings are from 6 GPM to 13 GPM. Standard rotation is right-hand (clockwise), with left-hand rotation (counterclockwise) available ("L" option). The flange mounting is the SAE "A" two-bolt standard.











  Quick Links
Model Code





Symbol

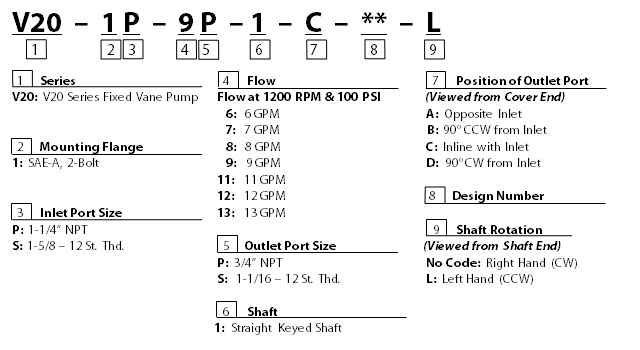

Model Code -
top

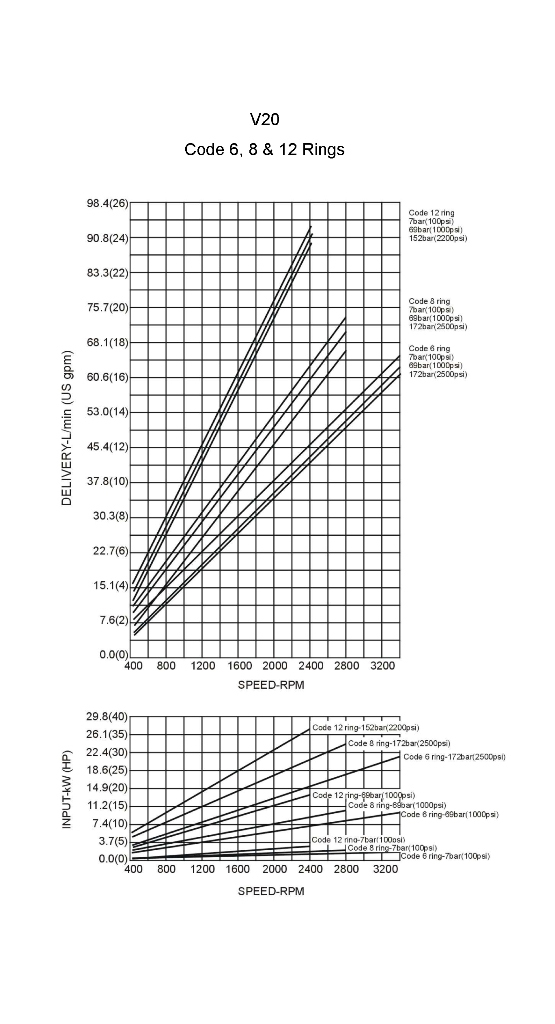

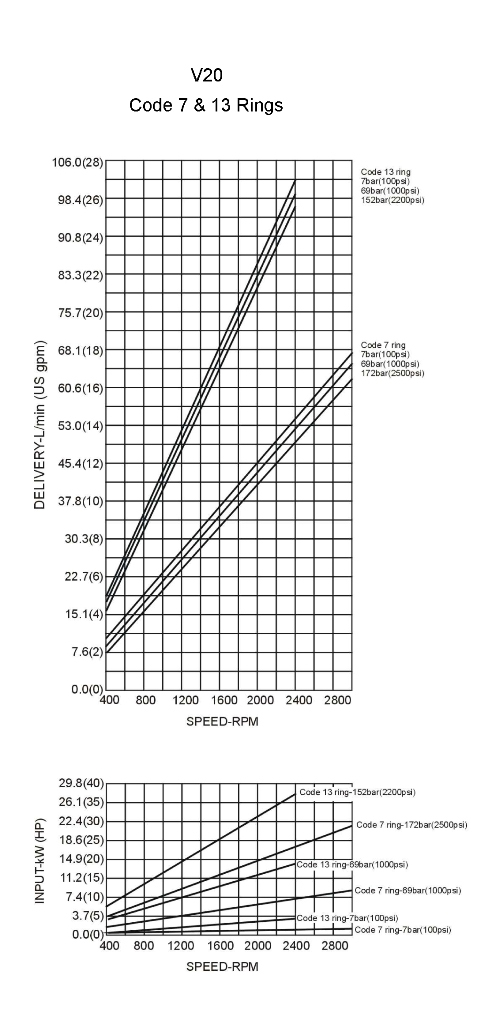

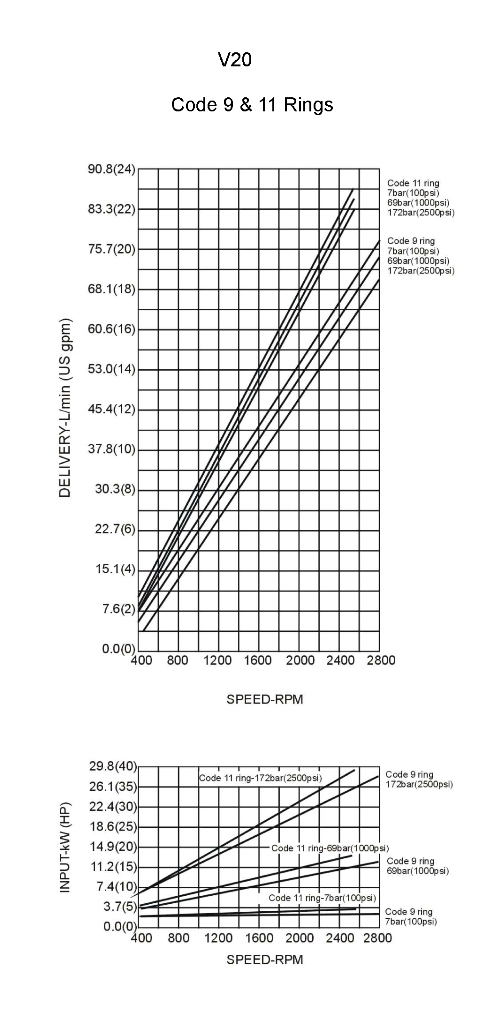

Performance Curves - top


V20 Single Pump
Based on Petroleum Oil: 120°F (49°C), Viscosity 150 SUS at 100°F (38°C), 0 Inlet PSI



Specifications - top

Based on Petroleum Oil: 120°F (49°C), Viscosity 150 SUS at 100°F (38°C), 0 Inlet PSI

Model
Flow Code
GPM @ 1200 RPM
& 100 PSI
Displacement
in³/r (cm³/r)
Max. Speed
RPM
Max. Pressure
PSI (BAR)

V20

6

1.19 (19.5)

3400

2500 (172)

7

1.39 (22.8)

3000

8

1.62 (26.5)

2800

9

1.81 (29.7)

2800

11

2.22 (36.4)

2500

12

2.38 (39.0)

2400

2200(152)

13

2.59 (42.4)

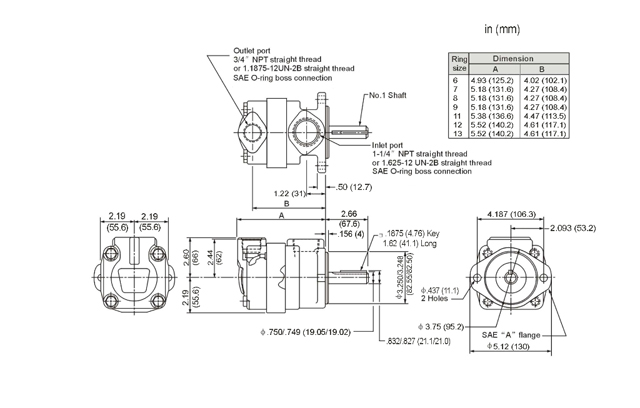

Dimensions - top

V20 Single Pump
Dimensions in Inches
