SOLENOID OPERATED DIRECTIONAL VALVE

SW-G10 SERIES

FEATURES
• Armature operates in system oil. Impact is decreased and cushioning added, making less noise & solenoid life is prolonged.
• Wet armature solenoid eliminates pushpin seal, reducing seal wear and leakage for longer valve life.
• Molded coil gives maximum insulating properties. They are protected by a special resin and impervious to moisture and dirt for ease of maintenance.
• Plug-in solenoid, easy to change coil.
• Change of pilot and drain can be easily accomplished by plugging or unplugging.
• Spool is designed to avoid creating jet flow or turbulence under high pressure and flow.
• Indicating light and bolt kits are standard.











  Quick Links

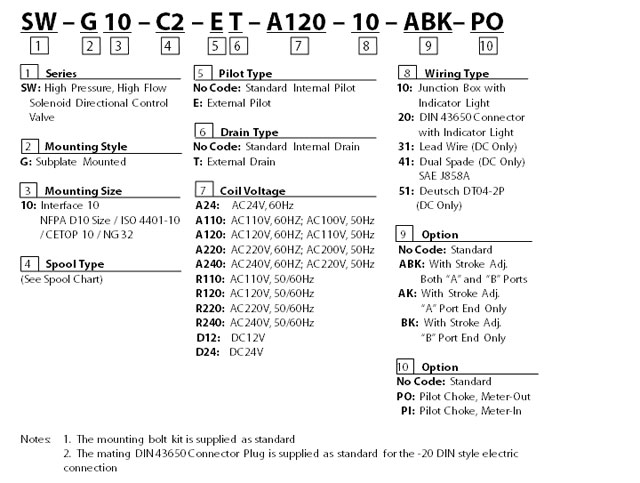

Model Code
Specifications
Dimensions




Model Code - top








Specifications - top


Maximum operating pressure 207 BAR (3000 PSI)
  207 BAR (3000 PSI) EXTERNALLY DRAINED
Maximum tank line back pressure
138 BAR (2000 PSI) INTERNALLY DRAINED

  MIN. 10 BAR (140 PSI)
Pilot pressure
MAX. 207 BAR (3000 PSI)

Maximum flow 1100 LPM (292 GPM)
Weight SW-G10-B/C/D SERIES 50 kgs (110 lbs)


Option ET - top




Solenoid Ratings - top


ELECTRIC SOURCE COIL TYPE VOLTAGE CURRENT & POWER
Hz SOURCE RANGE IN-RUSH HOLDING WATTAGE
RATED (±10%) CURRENT (A) CURRENT (A)
AC    A24  60 AC24V 21.6-26.4 6.8 1.7
(-10 and 20 Options) A110 50 AC100V 90-110 1.60 0.46
  60 AC100V 90-110 1.40 0.32
  AC110V 99-121 1.50 0.39
  A120 50 AC110V 99-121 1.30 0.38
  60 AC120V 108-132 1.20 0.27
  A220 50 AC200V 180-220 0.80 0.23
  60 AC200V 180-220 0.70 0.16
  AC220V 198-242 0.75 0.19
  A240 50 AC220V 198-242 0.67 0.1 9
  60 AC240V 216-264 0.59 0.13
  R110 50 AC100V 90-110 0.30 0.30 26
  60 AC110V 99-121 0.30 0.30
  R220 50 AC200V 180-220 0.15 0.15
  60 AC220V 198-242 0.15 0.15
  R240 50 AC220V 180-220 0.14 0.14
  60 AC240V 216-264 0.14 0.14
DC D12 DC 12V 10.8-13.2 2.20 2.20
(-10 and -20 Options) D24 DC 24V 21.6-26.4 1.10 1.10
DC D12 DC 12V 10.8-13.2 2.60 2.60 28.8
(-31 and -41 Options) D24 DC 24V 21.6-26.4 1.30 1.30


TECHNICAL DATA:

• Solenoid can be used within -10% to +10% of the rated voltage of the coil.
• Withstand voltage 1500 v/sec.
• Insulation resistance over 100MQ.
• A momentary signal of approx. 0.1 second is required for shifting action.

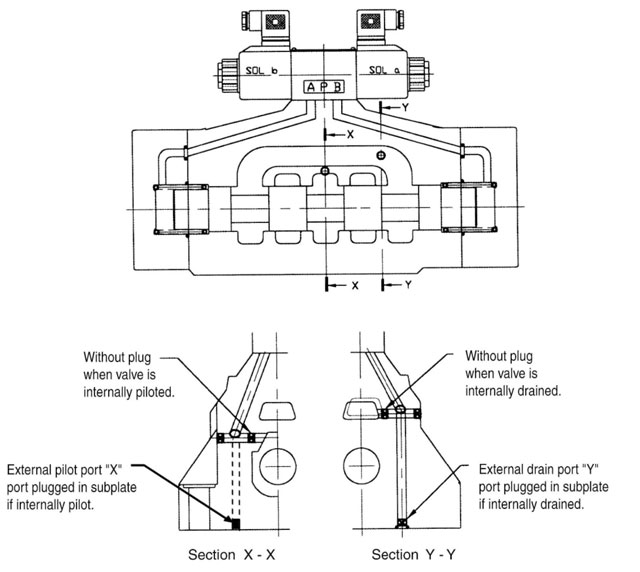

• Pilot pressure of internally drained valves must always exceed tank port pressure by a minimum of 3.5 BAR (50 PSI) Valve must be externally drained if there is a possibility of tank line pressure surges overcoming this differential.
• If the hydraulic circuit does not provide sufficient pilot pressure to shift valves with open center spool configurations C3, C5, C6, do either: (1) Use the external pilot option (“-E-“). Provide 140 PSI (10 Bar) minimum pilot pressure to the “X” port on the manifold or subplate from another source in your system to shift the valve. (2) If the valve must be internally piloted in your system, then install back pressure of 140 PSI (10 Bar) minimum at the tank line of the main valve. The valve must be externally drained (“-T-“) with this method.


PORT INTERCONNECTION

• With solenoid "b" energized P-A B-T.
• With solenoid "a" energized P-B A-T.
(But port interconnections are reversed for C3 C5, C6 and C60 type)

ACCESSORIES:

• Mounting bolt kits are supplied with valve socket head cap screws 3/4"-10UNC-2Bx3" L 6 pcs for tightening torque 4730-5850 kgf-cm (4100-5060 lbs-in).
• O-Ring P41 90° 4 pcs and P20 90° 2 pcs.

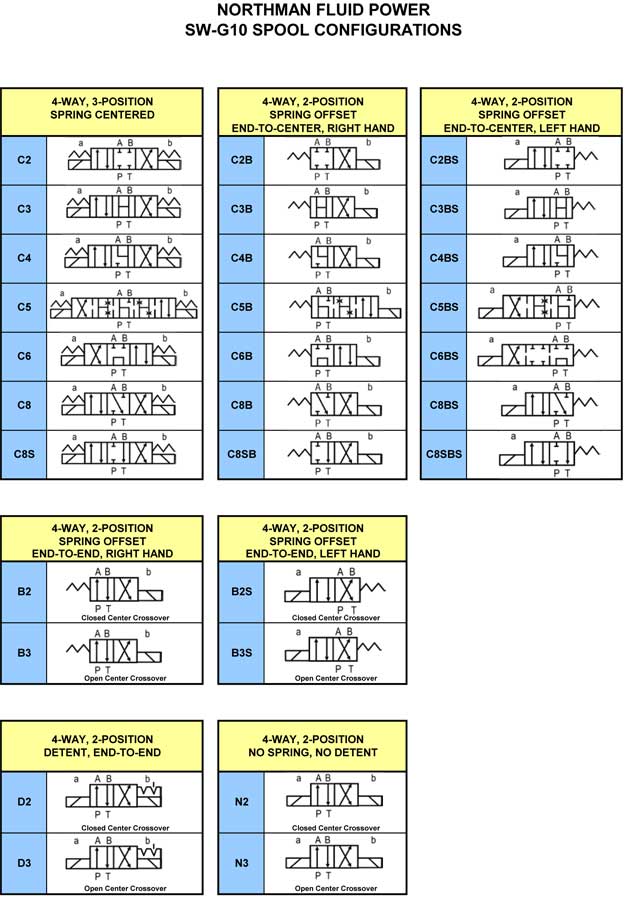

List of Spool Functions

THE MAXIMUM FLOW RATE LPM (GPM) UNDER DIFFERENT PRESSURE BAR (PSI)
SPOOL TYPE NORMAL POSITION SPRING CENTERED
50BAR (735 PSI) 100 BAR (1470 PSI) 150 BAR (2200 PSI) 207 BAR (3000 PSI)
C2 1100(292) 1100(292) 1100(292) 1030(274)
C3 1100(292) 1100(292) 1100(292) 1090(290)
C4 1100(292) 1100(292) 1100(292) 1030(274)
C5 1100(292) 1100(292) 1100(292) 1040(276)
C6 1100(292) 1050(278) 880(234) 800(212)
C7 1100(292) 1100(292) 1100(292) 1060(282)
C8 1100(292) 1100(292) 1100(292) 1060(282)
C9 1100(292) 1100(292) 1100(292) 1060(282)

THE MAXIMUM FLOW RATE LPM (GPM) UNDER DIFFERENT PRESSURE BAR (PSI)
SPOOL TYPE NORMAL POSITION NO SPRING
50 BAR (735 PSI) 100 BAR (1470 PSI) 150 BAR (2200 PSI) 207 BAR (3000 PSI)
N2 1100(292) 1100(292) 1100(292) 1100(292)
N3 1100(292) 1100(292) 1100(292) 1100(292)
N4 1100(292) 1100(292) 1100(292) 1100(292)

THE MAXIMUM FLOW RATE LPM (GPM) UNDER DIFFERENT PRESSURE BAR (PSI)
SPOOL TYPE NORMAL POSITION SPRING OFFSET
50 BAR (735 PSI) 100 BAR (1470 PSI) 150 BAR (2200 PSI) 207 BAR (3000 PSI)
B2 1100(292) 1100(292) 1100(292) 1100(292)
B3 1100(292) 1100(292) 1100(292) 1100(292)
B4 1100(292) 1100(292) 1100(292) 1100(292)



PRESSURE DROP AND PERFORMANCE CURVES


TEST SYSTEMS

1. Testing Valve
2. Pump
3. Pressure Sensor
4. Flow Sensor
5. Relief Valve
6. Throttle Valve

TEST CONDITIONS
Pressure: 69 BAR (1000PSI)
Flow Rate: 140 LPM(37 GPM)
Viscosity: 35 cSt (175SSU)

TEST CIRCUIT

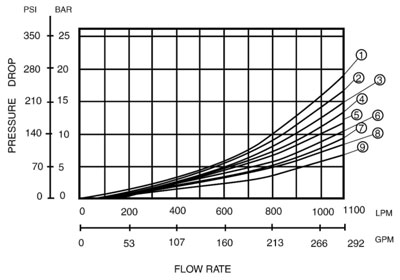

PERFORMANCE CURVES


CONTRAST CHART
BETWEEN FACTORS AND VISCOSITIES
VISCOSITY cSt 15 20 30 40 50 60 70 80 90 100
SSU 77 98 141 186 232 278 324 371 417 464
FACTOR (G) 0.81 0.87 0.96 1.03 1.09 1.14 1.19 1.23 1.27 1.30

The pressure drop (AP') can be obtained from the formula
AP'=AP (G'/0.85) for other specific gravity (G').
SPOOL TYPE PRESSURE DROP CURVE NUMBER
P-A B-T P-B A-T P-T
C2 9 6 9 8 -
C3 7 6 7 7 5
C4 9 6 9 6 -
C40 9 6 9 8 -
C5 9 6 8 6 1
C6 5 3 5 4 2
C60 8 5 8 5 3
C7 7 6 7 7 -
C8 7 6 7 7 -
C9 7 6 7 8 -



Dimensions - top

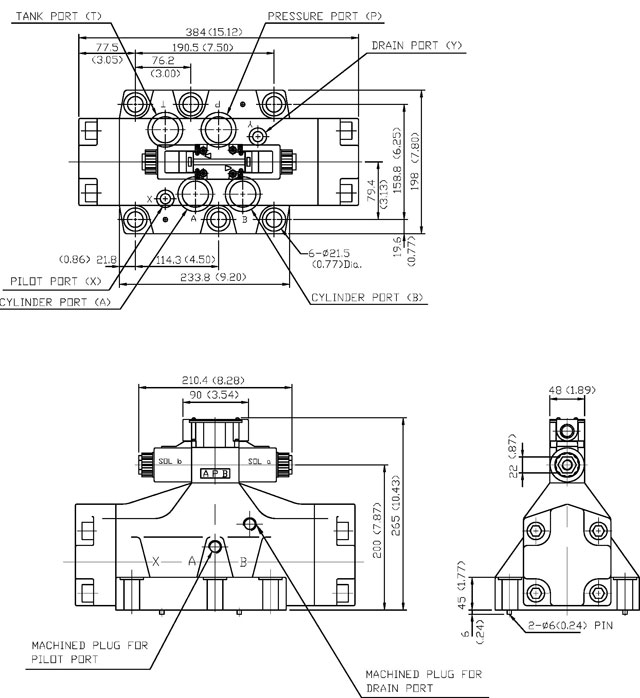

SW - G10 - ** - **** - 10

MOUNTING SURFACE: ISO 4401-AB-03-4-A
UNIT: mm( inch)





Dimensions - top

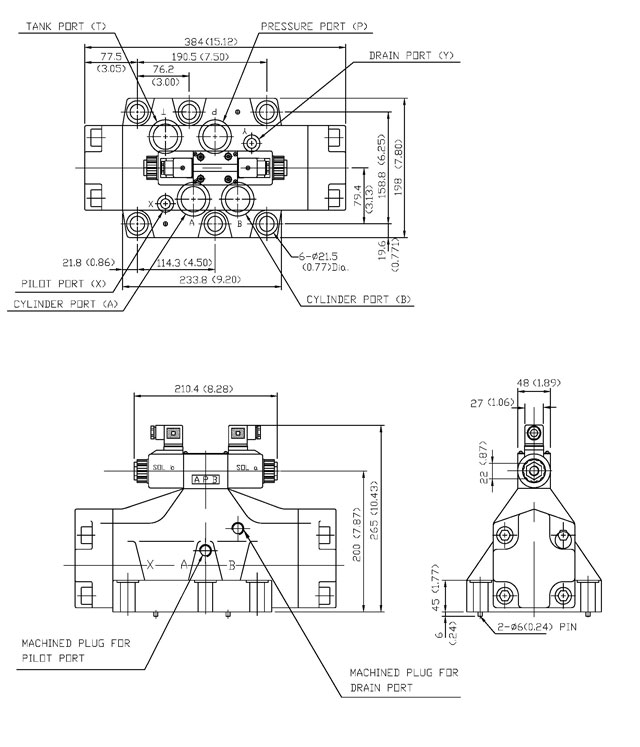

SW - G10 - *** - **** - 20

MOUNTING SURFACE: ISO 4401-AB-03-4-A
UNIT: mm( inch)
