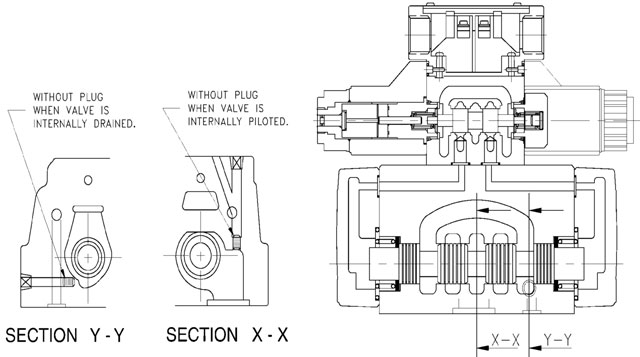

	SOLENOID OPERATED DIRECTIONAL VALVE SW-G04 SERIES FEATURES • Armature operates in system oil. Impact is decreased and cushioning added, making less noise & prolonged solenoid life. • Wet armature solenoid eliminates push pin seal, reducing seal wear and leakage for longer valve life. • Molded coil gives maximum insulating properties. They are protected by a special resin and impervious to moisture and dirt for ease of maintenance. • Plug-in solenoid, easy to change coil. • Change of pilot and drain can be easily accomplished by plugging or unplugging. • Spool is designed to avoid creating jet flow or turbulence under high pressure and flow. • Indicating light and bolt kits are standard.


	Quick Links Model Code Specifications Dimensions

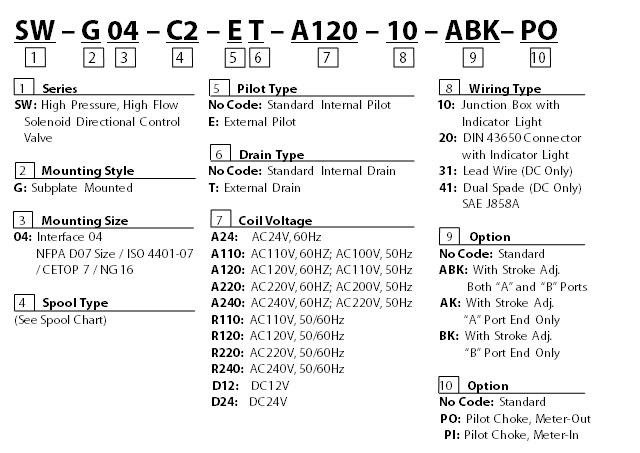

Model Code - top

Specifications - top

Maximum operating pressure	310 BAR (4500 PSI)
	207 BAR (3000 PSI) externally drained
Maximum tank line back pressure
	138 BAR (2000 PSI) internally drained

	Min. 8 BAR (113 PSI)
Pilot pressure
	Max. 245 BAR (3550 PSI)

Maximum flow	300 LPM (80 GPM)
	SW-G04-C,D SERIES 8.2 kgs (18 lbs)
Weight
	SW-G04-B SERIES 7.9 kgs (17.5 lbs)

Option ET - top

Solenoid Ratings - top

ELECTRIC SOURCE	COIL TYPE	VOLTAGE			CURRENT & POWER
		Hz	SOURCE	RANGE	IN-RUSH	HOLDING	WATTAGE
		Hz	RATED	(±10%)	CURRENT (A)	CURRENT (A)	WATTAGE
AC	A24	60	AC24V	21.6-26.4	6.8	1.7
(-10 and -20 Options)	A110	50	AC100V	90-110	1.60	0.46
		60	AC100V	90-110	1.40	0.32
		60	AC110V	99-121	1.50	0.39
	A120	50	AC110V	99-121	1.30	0.38
	A120	60	AC120V	108-132	1.20	0.27
	A220	50	AC200V	180-220	0.80	0.23
		60	AC200V	180-220	0.70	0.16
		60	AC220V	198-242	0.75	0.19
	A240	50	AC220V	198-242	0.67	0.1 9
	A240	60	AC240V	216-264	0.59	0.13
R	R110	50	AC100V	90-110	0.30	0.30	26
(-10 and -20 Options)	R110	60	AC110V	99-121	0.30	0.30
	R220	50	AC200V	180-220	0.15	0.15
	R220	60	AC220V	198-242	0.15	0.15
	R240	50	AC220V	180-220	0.14	0.14
	R240	60	AC240V	216-264	0.14	0.14
DC	D12	DC 12V		10.8-13.2	2.20	2.20
(-10 and -20 Options)	D24	DC 24V		21.6-26.4	1.10	1.10
DC	D12	DC 12V		10.8-13.2	2.60	2.60	28.8
(-31 and -41 Options)	D24	DC 24V		21.6-26.4	1.30	1.30	28.8

TECHNICAL DATA:

• Solenoid can be used within - 10% to + 10% of the rated voltage of the coil.
• Withstand voltage 1500 v/sec.
• Insulation resistance over 100MQ.
• A momentary signal of approx 0.1 second is required for shifting action.
• Pilot pressure of internally drained valves must always exceed tank port pressure by a minimum
of 8.0 BAR(113 PSI) Valve must be externally drained if there is a possibility of tank line pressure
surges overcoming this differential.
• Open center spools C3, C5, C6 and C60 must be externally drained
• Conforms to IP65

ACCESSORIES:

• Mounting bolt kits are supplied with valve socket head cap screws
2 pieces 1/4"- 20 UNC - 2B x 1- 3/4"L for tightening torque 120-150 kgf-cm (104-130 lbs-in).
4 pieces 3/8" - 16 UNC-2B x 2"L for tightening torque 580-720 kgf-cm (502-624 lbs-in).
• O-ring P22A 4 pieces, P9 2 pieces.

List of Spool Functions

SPOOL TYPE	SPRING CENTERED
NORMAL POSITION	50 BAR (735 PSI)	100 BAR (1470 PSI)	150 BAR (2200 PSI)	207 BAR (3000 PSI)	250 BAR (3675 PSI)	310 BAR (4500 PSI)
C2	300(80.0)	300(80.0)	300(80.0)	260(69.3)	200(53.3)	140(37.3)
C2	300(80.0)	300(80.0)	260(69.3)	155(41.3)	120(32.0)	110(29.3)
C3	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)
C4	300(80.0)	300(80.0)	300(80.0)	260(69.3)	245(65.3)	160(42.7)
C4	300(80.0)	300(80.0)	260(69.3)	185(49.3)	140(37.3)	110(29.3)
C40	300(80.0)	300(80.0)	300(80.0)	260(69.3)	200(53.3)	145(38.7)
C40	300(80.0)	300(80.0)	260(69.3)	155(41.3)	120(32.0)	110(29.3)
C5	260(69.3)	255(68.0)	250(66.6)	245(65.3)	240(64.0)	240(64.0)
C6	300(80.0)	300(80.0)	265(80.0)	255(68.0)	245(65.3)	235(62.7)
C60	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)
C60	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)
C7	300(80.0)	300(80.0)	300(80.0)	290(80.0)	280(74.7)	255(68.0)
C8	300(80.0)	300(80.0)	285(76.0)	230(61.3)	170(45.3)	135(36.0)
C8	300(80.0)	300(80.0)	255(68.0)	165(44.0)	120(32.0)	110(29.3)
C9	300(80.0)	300(80.0)	270(72.0)	200(53.3)	160(42.7)	140(37.3)

NOTE: The upper number in table describes the maximum flow for standard type.
The lower number in table describes the maximum flow for shock-less type.

SPOOL TYPE NORMAL POSITION	NO SPRING
SPOOL TYPE NORMAL POSITION	50 BAR (735 PSI)	100 BAR (1470 PSI)	150 BAR (2200 PSI)	207 BAR (3000 PSI)	250 BAR (3675 PSI)	310 BAR (4500 PSI)
N2	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)
N3	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)
N4	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)
N40	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)

THE MAXIMUM FLOW RATE LPM (GPM) UNDER DIFFERENT PRESSURE BAR (PSI)
SPOOL TYPE	SPRING OFFSET
NORMAL POSITION	50 BAR (735 PSI)	100 BAR (1470 PSI)	150 BAR (2200 PSI)	207 BAR (3000 PSI)	250 BAR (3675 PSI)	310 BAR (4500 PSI)
B2	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)
B3	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)
B4	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)
B40	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)	300(80.0)

PRESSURE DROP AND PERFORMANCE CURVES

TEST SYSTEMS

1. Testing Valve
2. Pump
3. Pressure Sensor
4. Flow Sensor
5. Relief Valve
6. Throttle Valve

TEST CONDITIONS
Pressure: 69 BAR (1000PSI)
Flow Rate: 140 LPM(37 GPM)
Viscosity: 35 cSt (175SSU)

TEST CIRCUIT

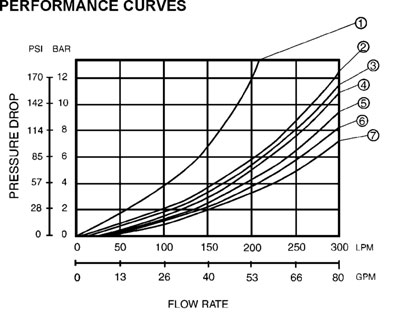

PERFORMANCE CURVES

CONTRAST CHART BETWEEN FACTORS AND VISCOSITIES

VISCOSITY	cSt	15	20	30	40	50	60	70	80	90	100
VISCOSITY	SSU	77	98	141	186	232	278	324	371	417	464
FACTOR (G)		0.81	0.87	0.96	1.03	1.09	1.14	1.19	1.23	1.27	1.30

The pressure drop (AP') can be obtained from the formula
AP'=AP (G'/0.85) for other specific gravity (G').

SPOOL	PRESSURE DROP CURVE NUMBER
TYPE	P-A	B-T	P-B	A-T	P-T
C2	5	4	5	6	-
C3	5	3	5	5	7
C4	5	3	5	5	-
C40	5	4	5	6	-
C5	7	4	5	5	5
C6	5	3	5	6	1
C60	7	5	7	7	2
C7	5	4	5	6	-
C8	5	4	5	5	-
C9	6	4	5	6	-

Dimensions - top

SW - G04 - ** - **** - 10

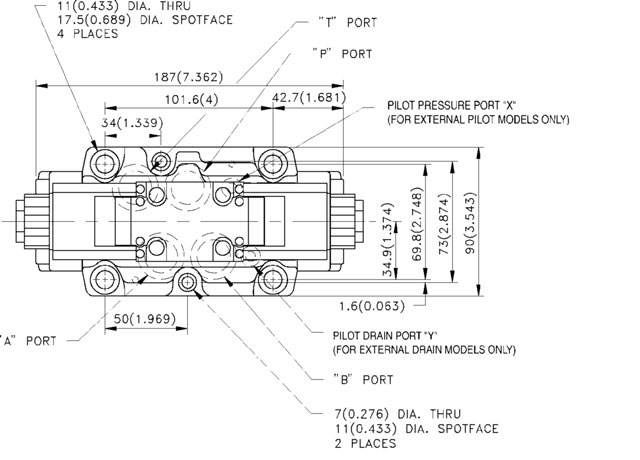

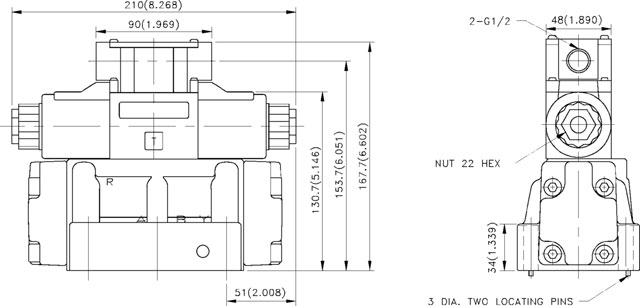

MOUNTING SURFACE: ISO 4401-AB-03-4-A
UNIT: mm( inch)

Dimensions - top

SW - G04 - *** - **** - 10 - AB-K
with DC/RF solenoids

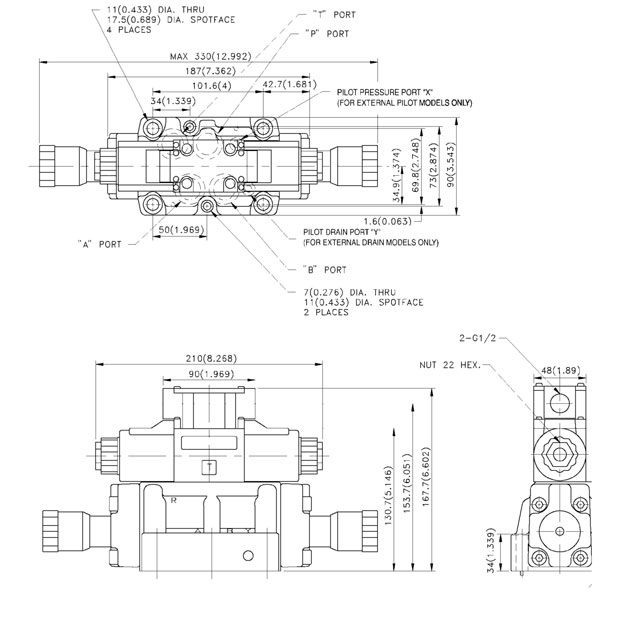

MOUNTING SURFACE: ISO 4401-AB-03-4-A
UNIT: mm( inch)
