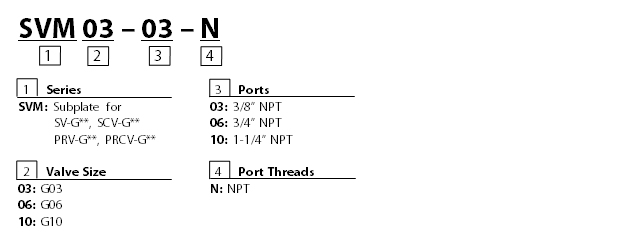

 Model Code - top  |
Dimensions- top UNIT: mm(inch)
ISO 5781-AG-06-2-A
SVM-03-**
|
THIS SUBPLATE IS USED
FOR SV/SCV-G03, PRV/PRCV-G03 |
||||||||

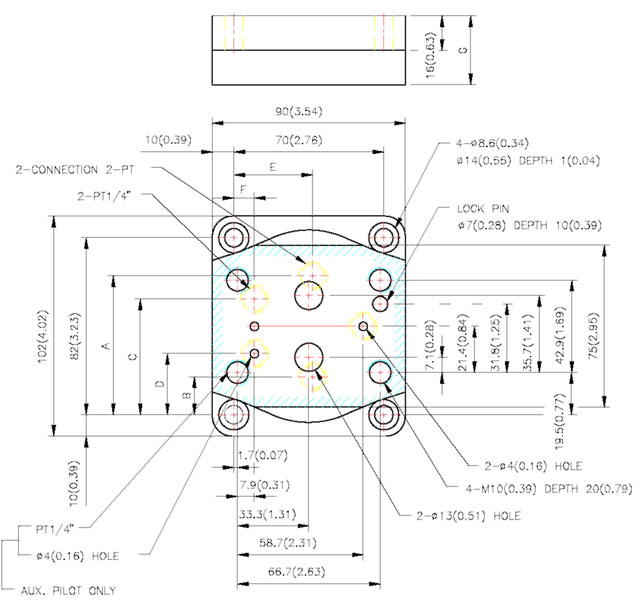

| SUBPLATE | PORT PT | A | B | C | D | E | F | G |
| SVM-03-03 | 3/8" | 61 (2.40) | 21 (0.83) | 40.9 (1.61) | - | 35 (1.38) | 9.6 (0.38) | 32 (1.26) |
Dimensions- top UNIT: mm(inch)
ISO 5781-AH-08-2-A
SVM-06-**
|
THIS
THIS SUBPLATE IS USED
FOR SV/SCV-G06,
PRV/PRCV-G03 |
||||||||||

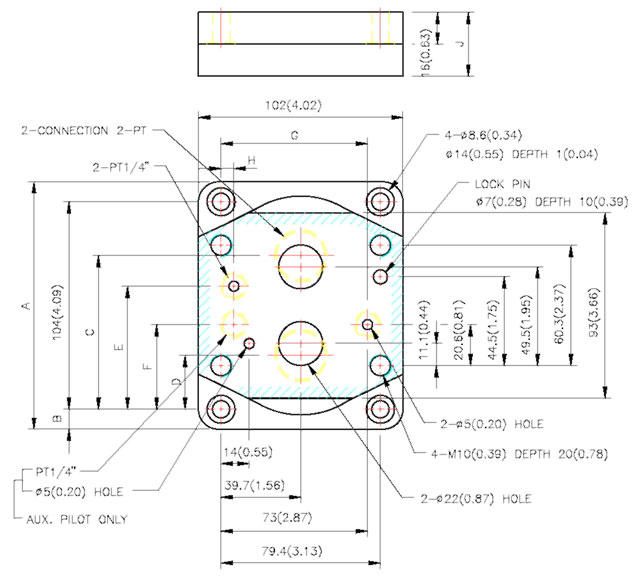

| SUBPLATE | PORT PT | A | B | C | D | E | F | G | H | J |
| SVM-06-06 | 3/4" | 124 (4.88) | 10 (0.39) | 77 (3.03) | 27 (1.06) | 61.7 (2.43) | - | 73 (2.87) | 6.4 (0.25) | 36 (1.42) |
|
Dimensions - top UNIT: mm(inch) ISO 5781-AJ-10-2-A SVM-10-** |
|
 |
|
| SUBPLATE | PORT PT | A | B | C | D | E | F | G |
| SVM-10-10 | 1-1/4" | 150 (5.91) | 12 (0.47) | 96 (3.78) | 30 (1.18) | - | 45 (1.77) | 13.6 (0.54) |
