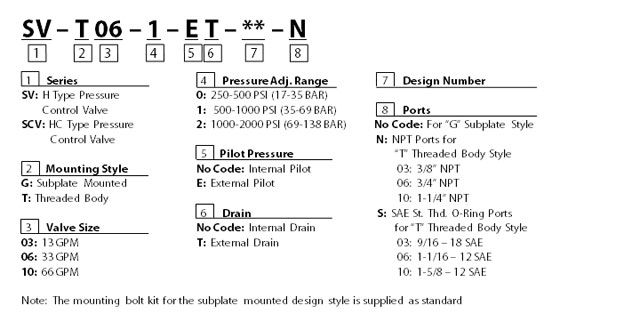

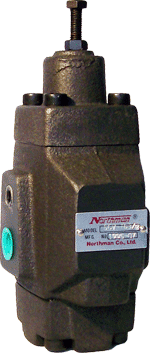

 Model Code - top  |
SPECIFICATIONS - top
| MODEL | MAX. PRESSURE | PRESSURE ADJ.RANGE | MAX. FLOW |
| BAR (PSI) | BAR (PSI) | LPM(GPM) | |
| SV/SCV-*03 | 207 (3000) | 0: 17-35(250-500) | 50(13) |
| SV/SCV-*06 | 1: 35-69 (500-1000) | 125(33) | |
| SV/SCV-*10 | 2: 35-138(1000-2000) | 250(66) |

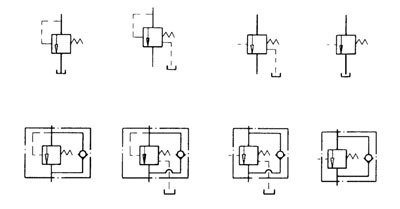

SYMBOLS - top

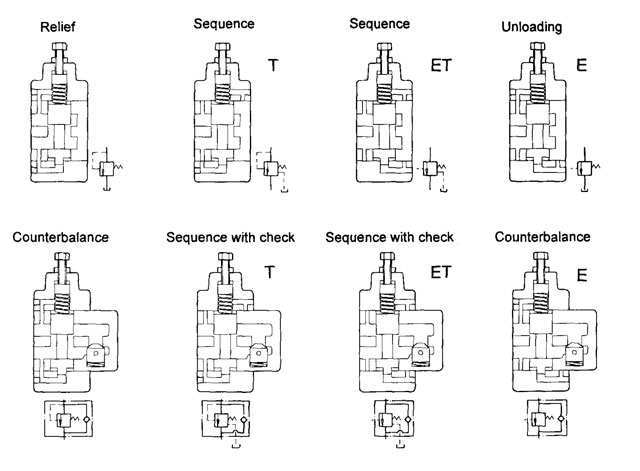

VALVE TYPE - top
PERFORMANCE CURVES

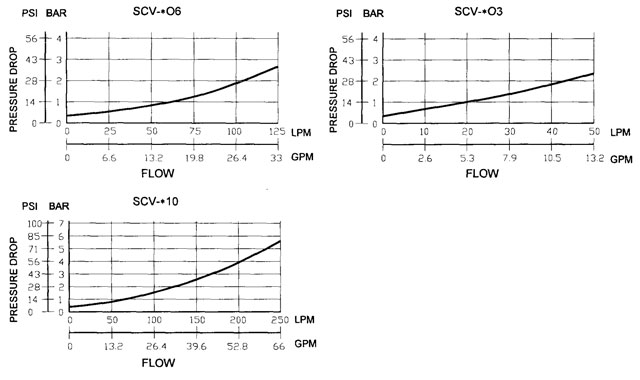

PRESSURE DROP FOR REVERSED FREE FLOW
| Dimensions - top | UNIT: mm(inch) |

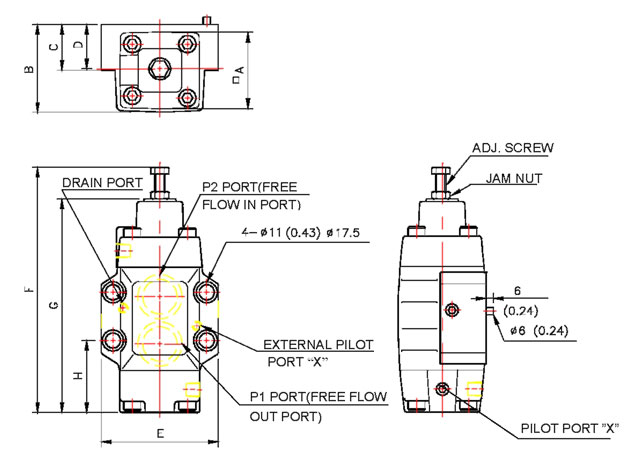

SV-G03/06
| MODEL | A | B | C | D | E | F | G | H | BOLT | WEIGHT | |
| METER(INCH) | KGS | LBS | |||||||||
| SV-G03 | 60 (2.36) | 67 (2.64) | 41.7 (1.64) | 39 (1.54) | 89 (3.50) | 195 (7.68) | 170.3 (6.70) | 52.3 (2.06) | M10x50x4PCS (3/8"x2"x4PCS) | 4.0 | 8.8 |
| SV-G06 | 73 (2.87) | 81 (3.19) | 41.5 (1.63) | 39 (1.54) | 102 (4.02) | 219 (8.62) | 192 (7.56) | 51 (2.01) | M10x50x4PCS (3/8"x2"x4PCS) | 6.1 | 13.4 |
| Dimensions - top | UNIT: mm(inch) |

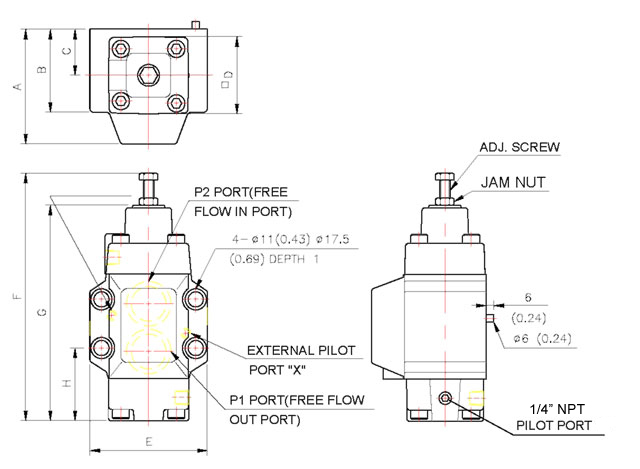

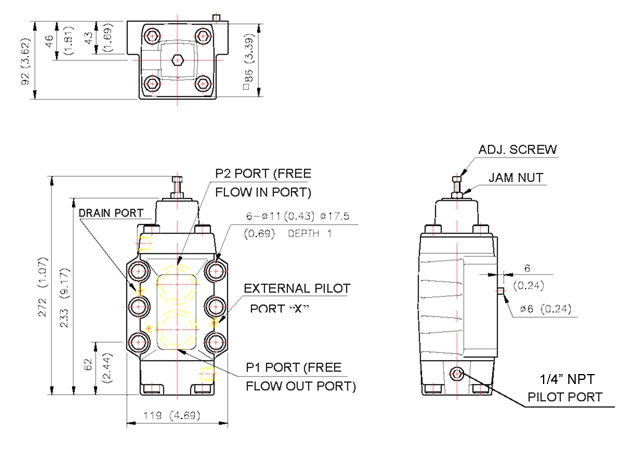

SV-G10
| MODEL | A | G | H | J | K | L | M | N | Y | Z | WEIGHT | SUBPLATE |
| KGS(LBS) | TYPE | |||||||||||
| SV-G06 SERIES | 244 (9.61) | 104 (4.09) | 70 (2.76) | 16.9 (0.67) | 66.7 (2.63) | 23.8 (0.94) | 55.5 (2.19) | 11 (0.43) | 17.5 (0.69) | 26 (1.02) | 10 KGS (22.0LBS) | MF-06 |
| SV-G10 SERIES | 281 (11.06) | 124 (4.88) | 82.6 (3.25) | 18 (0.71) | 88.9 (3.5) | 31.8 (1.25) | 76.2 (3.00) | 12.7 (0.50) | 21.5 (0.85) | 32 (1.26) | 27 KGS (59.5LBS) | MF-10 |
| Dimensions - top | UNIT: mm(inch) |
SCV-G03/06
| MODEL | A | B | C | D | E | F | G | H | BOLT | WEIGHT | |
| METER(INCH) | KGS | LBS | |||||||||
| SCV-G03 | 87 (3.43) | 59 (2.32) | 35 (1.38) | 60 (2.36) | 89 (3.50) | 191 (7.52) | 170 (6.69) | 49.6 (1.95) | M10x70x4PCS (3/8"x2 -3/4"x4PCS) | 4.8 | 10.6 |
| SCV-G06 | 108 (4.25) | 69 (2.72) | 40 (1.57) | 73 (2.87) | 102 (4.02) | 221 (8.70) | 188 (7.40) | 51 (2.01) | M10x80x4PCS (3/8"x3 -1/4"x4PCS) | 7.8 | 17.2 |

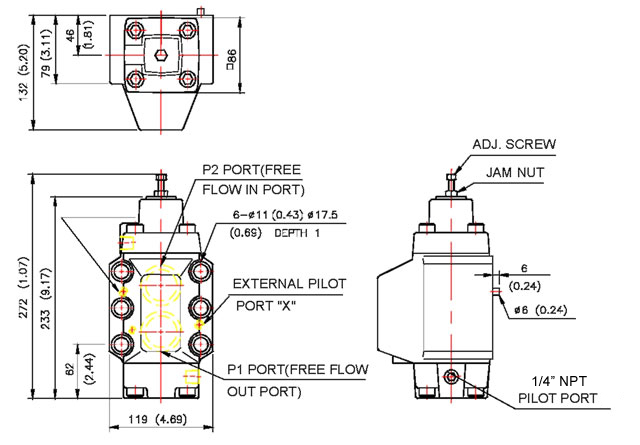

SCV-G10
| Dimensions - top | UNIT: mm(inch) |

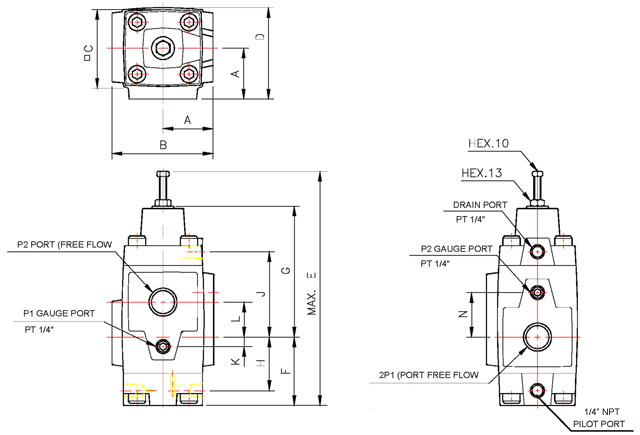

SV-T03/06/10
| MODEL | A | B | C | D | E | F | G | H |
| SV-T03 | 42 (1.65) | 84 (3.31) | 61 (2.40) | 74 (2.91) | 195 (7.68) | 57 (2.24) | 106 (4.17) | 43 (1.69) |
| SV-T06 | 48 (1.89) | 96 (3.78) | 73 (2.87) | 86 (3.39) | 219 (8.62) | 64.5 (2.54) | 123.5 (4.86) | 50.5 (1.99) |
| SV-T10 | 68.5 (2.70) | 137 (5.39) | 84 (3.31) | 103 (4.05) | 272 (10.71) | 84 (3.31) | 149 (5.87) | 66 (2.60) |
| MODEL | J | K | L | N | Q | WEIGHT | ||
| KGS | LBS | |||||||
| SV-T03 | 70 (2.76) | 0 (0) | 28 (1.10) | 28 (1.10) | 3/8 (1/2) | 3.7 | 8.1 | |
| SV-T06 | 80.5 (3.17) | 9 (0.35) | 33 (1.30) | 42 (1.65) | 3/4 (1) | 6.2 | 13.6 | |
| SV-T10 | 98 (3.86) | 12 (0.47) | 40 (1.57) | 52 (2.05) | 11/4 (11/2) | 12.0 | 26.4 | |
| Dimensions - top | UNIT: mm(inch) |

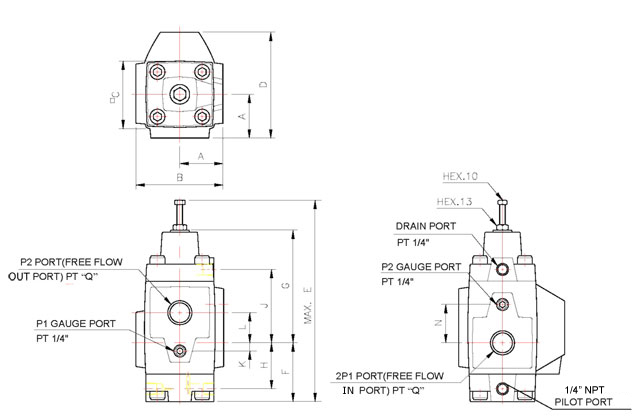

SCV-T03/06/10
| MODEL | A | B | C | D | E | F | G | H |
| SCV-T03 | 41 (1.61) | 82 (3.23) | 63 (2.48) | 96 (3.78) | 194 (7.64) | 59 (2.32) | 110 (4.33) | 43 (1.69) |
| SCV-T06 | 50 (1.97) | 100 (3.94) | 76 (2.99) | 118 (4.65) | 223.5 (8.80) | 64.5 (2.54) | 123.5 ((4.86) | 50.5 (1.99) |
| SCV-T10 | 68.5 (2.70) | 137 (5.39) | 84 (3.31) | 156 (6.14) | 269 (10.59) | 84 (3.31) | 149 (5.87) | 66 (2.60) |
| MODEL | J | K | L | N | Q | WEIGHT | ||
| KGS | LBS | |||||||
| SCV-T03 | 70 (2.76) | 0 (0) | 28 (1.10) | 28 (1.10) | 3/8 (1/2) | 4.2 | 4.2 | |
| SCV-T06 | 80.5 (3.17) | 9 (0.35) | 33 (1.30) | 42 (1 65) | 3/4 (1) | 7.5 | 16.5 | |
| SCV-T10 | 98 (3.86) | 12 (0.47) | 40 (1.57) | 52 (2.05) | 11/4 (11/2) | 13.8 | 30.4 | |
