MODULAR THROTTLE AND CHECK VALVE

MT-03 SERIES

The modular adjustable flow control valve functions as a needle valve flow restrictor in one direction in a branch of a circuit, with free flow in the opposite direction. It may be specified to operate on the A, B, or A & B ports in either a “meter-in” or “meter-out” configuration. Adjustment is made with a calibrated knob, standard with the valve.

As a modular valve, this valve mounts between an NFPA D05 size directional control valve and the subplate. A longer than standard bolt kit is required when mounting modular valves in a stack. Refer to bolt kits.








  Quick Links
Model Code
Performance Curves
Dimensions

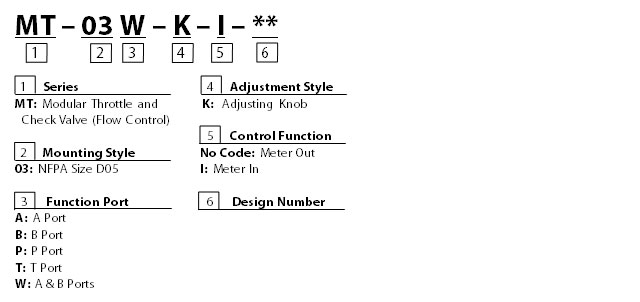

Model Code - top

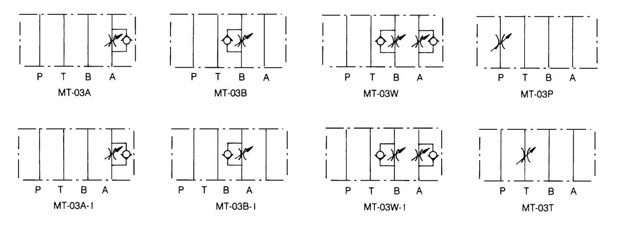

Symbols - top




Features - top


Max. operating pressure 250 BAR (3675 PSI)
Max. flow capacity 70 LPM (20 GPM)

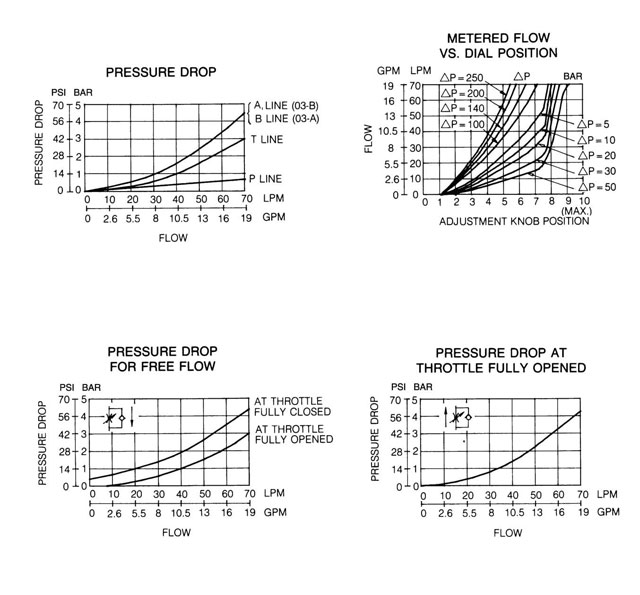

Performance Curves- top

Models with MT-03W/A/B

 TEST CONDITIONS
Viscosity: 35 cSt (175 SSU) Temperature: 50° C (122° F)

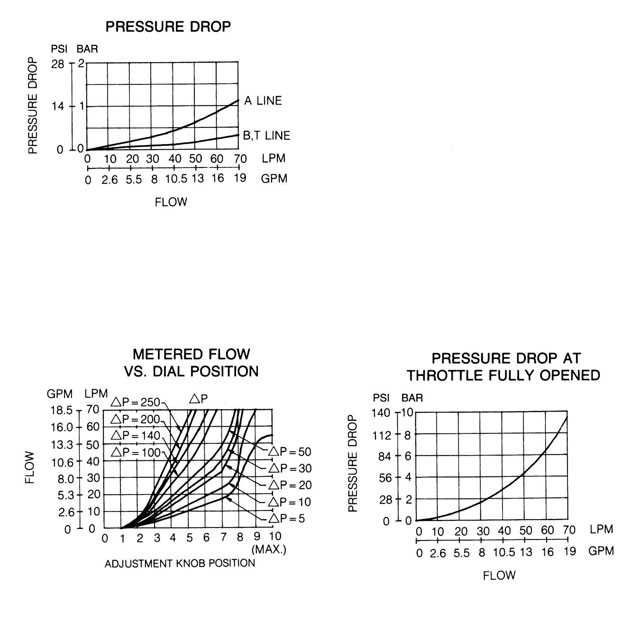

Performance Curves- top

 Models with MT-P/T

TEST CONDITIONS
 Viscosity: 35 cSt (175 SSU) Temperature: 50° C (122° F)

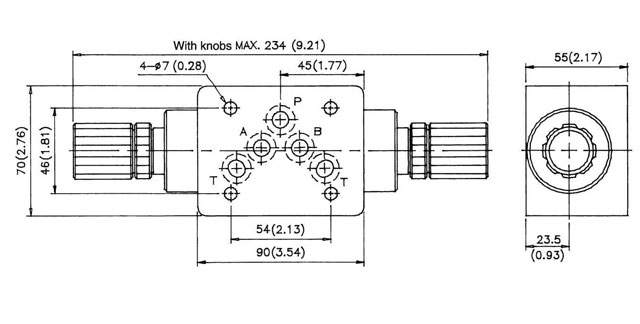

Dimensions - top UNIT: mm(inch) WEIGHT: 2.8 kgs(6.171 lbs) Mounting Surface: ISO 4401-AB-03-4-A



MT-03W-*-*-40


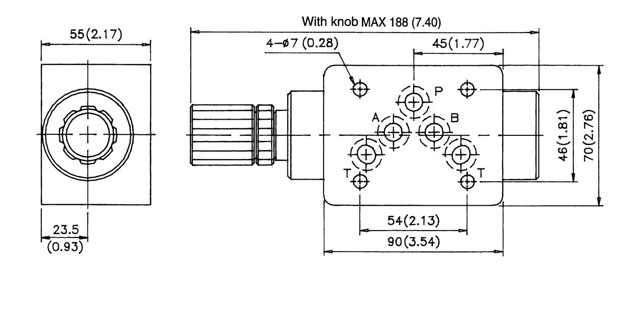

Dimensions - top UNIT: mm(inch) WEIGHT: 2.8 kgs(6.171 lbs) Mounting Surface: ISO 4401-AB-03-4-A


MT-03A-*-40

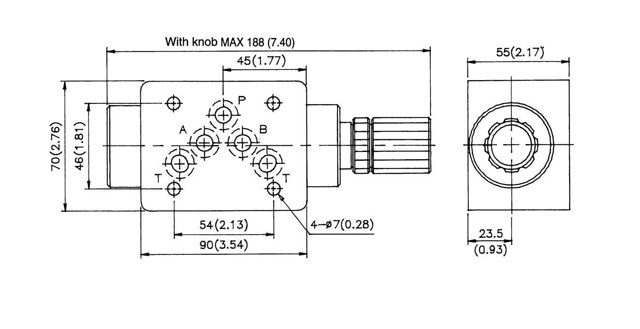

Dimensions - top UNIT: mm(inch) WEIGHT: 2.8 kgs(6.171 lbs) Mounting Surface: ISO 4401-AB-03-4-A


MT-03B-*-40
