MODULAR RELIEF VALVE

MRF-03 SERIES

The modular adjustable relief valve is designed to limit the operating pressure in a hydraulic system or in a branch of the system to a maximum set pressure. The internal piston moves to smoothly relieve the pressure when the system pressure reaches the desired setting, maintaining stable pressure control and repeatability.

Pressure relief is available on the P, A, B, and A & B ports. Adjustment is made with a calibrated knob, standard with the valve.

As a modular valve, this valve mounts between an NFPA D05 size directional control valve and the subplate. A longer than standard bolt kit is required when mounting modular valves in a stack. Refer to bolt kits.










  Quick Links
Model Code
Performance Curves
Dimensions




Model Code -
top




Symbols - top





Features - top


Max. operating pressure 250 BAR (3675 PSI)
Max. flow capacity 35 LPM (9.3 GPM)


Performance Curves- top

TEST CONDITIONS
Viscosity: 35 cSt (175 SSU) Temperature: 50° C (122° F)

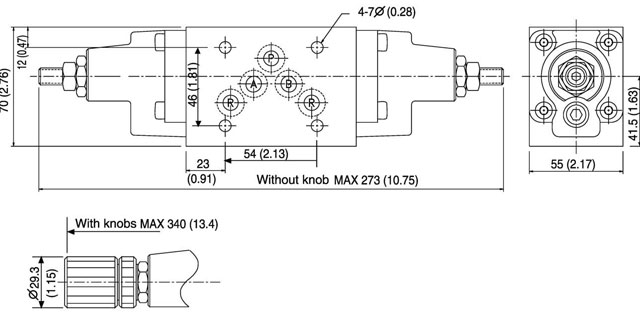

Dimensions - top UNIT: mm(inch) WEIGHT: 3.3 kgs(7.28 lbs) Mounting Surface: ISO 4401-AB-03-4-A



MRF-03A/B/P-*-* -40

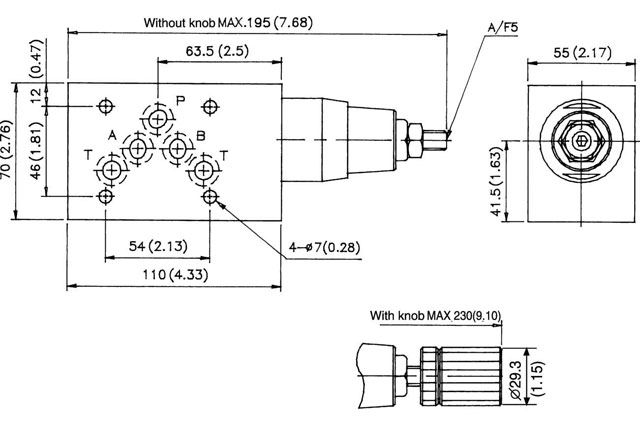

Dimensions - top UNIT: mm(inch) WEIGHT: 1.5 kgs(3.3 lbs) Mounting Surface: ISO 4401-AB-03-4-A

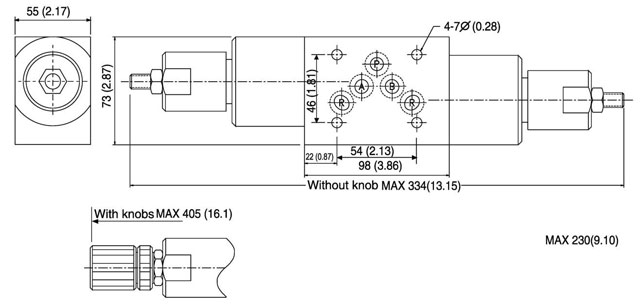

Dimensions - top UNIT: mm(inch) WEIGHT: 1.5 kgs(3.3 lbs) Mounting Surface: ISO 4401-AB-03-4-A

MRF-03D-*-*-*-40
