MODULAR RELIEF VALVE

MPR-03 SERIES

The modular adjustable pressure reducing valve will ensure that the operating pressure in a branch of a hydraulic system will be maintained at a lower setting than that of the main system pressure. The valve functions on the selected P, A, or B port and is internally drained. Adjustment is made with a calibrated knob, standard with the valve.

As a modular valve, this valve mounts between an NFPA D05 size directional control valve and the subplate. A longer than standard bolt kit is required when mounting modular valves in a stack. Refer to bolt kits.








  Quick Links

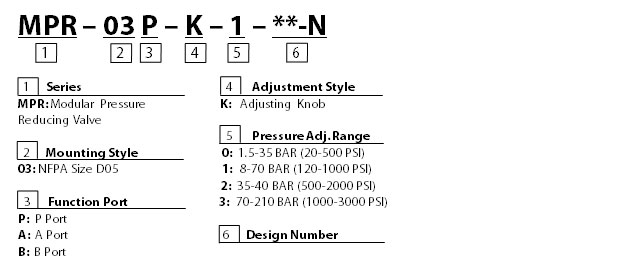

Model Code
Performance Curves
Dimensions




Model Code - top





Symbols - top





Features - top

Max. operating pressure 250 BAR (3675 PSI)
Max. flow capacity 70 LPM (20 GPM)


Performance Curves- top

TEST CONDITIONS
 Viscosity: 35 cSt (175 SSU) Temperature: 50° C (122° F)

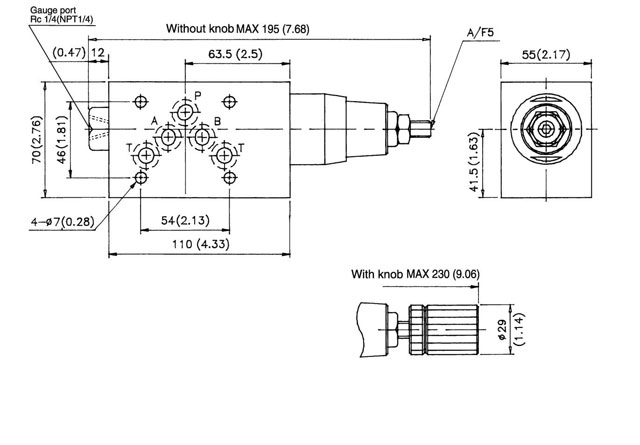

Dimensions - top UNIT: mm(inch) WEIGHT: 3.4 kgs(7.5 lbs) Mounting Surface: ISO 4401-AB-03-4-A



MPR-03A/B/P-*-* -40
