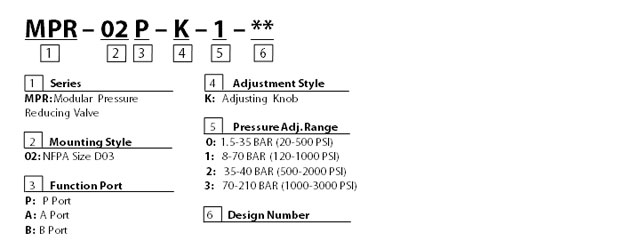

MODULAR PRESSURE REDUCING VALVE MPR-02 SERIES The modular adjustable pressure reducing valve will ensure that the operating pressure in a branch of a hydraulic system will be maintained at a lower setting than that of the main system pressure. The valve functions on the selected P, A, or B port and is internally drained. Adjustment is made with a calibrated knob, standard with the valve. As a modular valve, this valve mounts between an NFPA D03 size directional control valve and the subplate. A longer than standard bolt kit is required when mounting modular valves in a stack. Refer to bolt kits.       Quick Links Model Code Performance Curves Dimensions     Model Code - top   Symbols - top Features - top Max. operating pressure 250 BAR (3675 PSI) Max. flow capacity 35 LPM (9.3 GPM) Performance Curves- top TEST CONDITIONS Viscosity: 35 cSt (175 SSU) Temperature: 50° C (122° F) Dimensions - top UNIT: mm(inch) WEIGHT: 1.5 kgs(3.3 lbs) Mounting Surface: ISO 4401-AB-03-4-A MPR - 02 A/B/P - K - **
