MODULAR PILOT CHECK VALVE MPC-02 SERIES The modular pilot-operated check valve will allow free flow in one direction and block flow in the opposite direction. It functions to positively hold the actuator in a neutral position. Movement is restored by an automatic pilot pressure signal when the directional control valve shifts to move the actuator. It may be specified to operate on the A, B, or A & B port. As a modular valve, this valve mounts between an NFPA D03 size directional control valve and the subplate. A longer than standard bolt kit is required when mounting modular valves in a stack. Refer to bolt kits.

Quick Links Model Code Performance Curves Dimensions

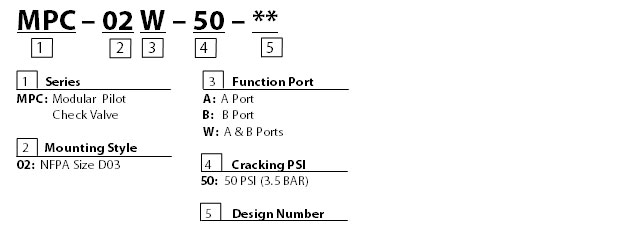

Model Code - top

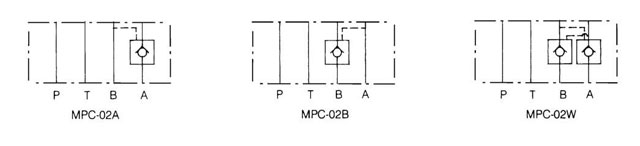

Symbols - top




Features - top

Max. operating pressure	250 BAR (3675 PSI)
Max. flow capacity	35 LPM (9.3 GPM)

Internal Leakage: 0.1 cc/minute (2 drops/minute) MAX. at 207 BAR(3000 PSI).

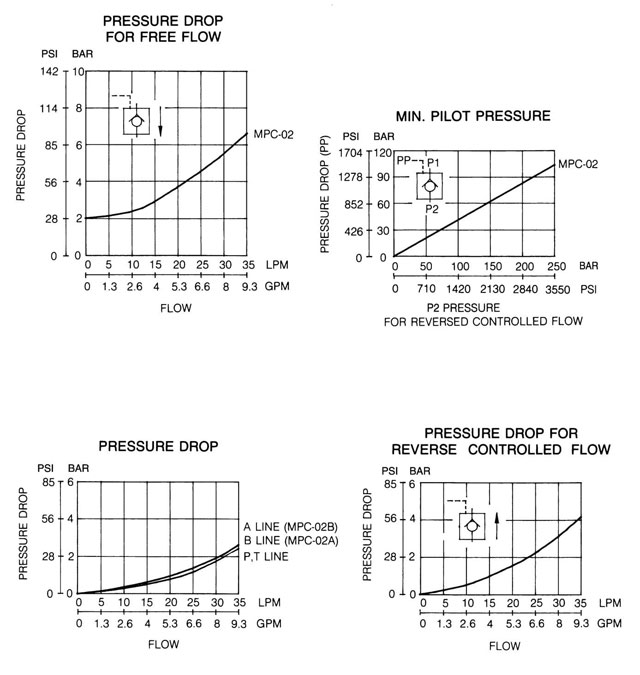

Performance Curves- top

TEST CONDITIONS
Viscosity: 35 cSt (175 SSU) Temperature: 50° C (122° F)

Dimensions - top

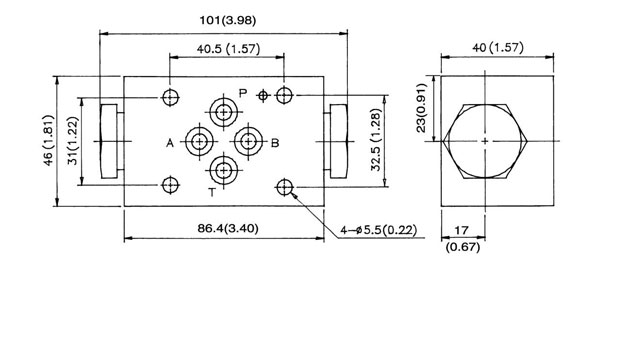

UNIT: mm(inch) WEIGHT: 1.5 kgs(3.3 lbs) Mounting Surface: ISO 4401-AB-03-4-A

MPC-02- * -40
