MODULAR BOLT KITS

MBK-06 SERIES


The mounting bolt kits for the modular valve series MBK-06 size consist of six (6) 1/2-13 socket head cap screws. The lengths are sized to mount from one (1) to three (3) Northman Fluid Power modular valves between a Northman directional control valve and a subplate or manifold.















  Quick Links
Model Code
Dimensions

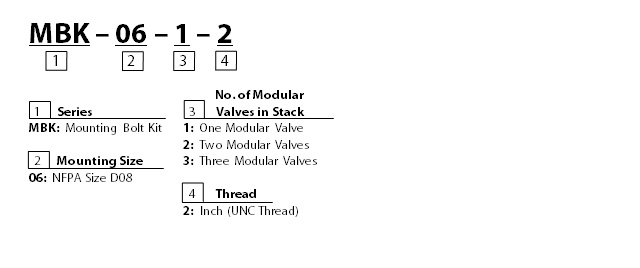

Model Code -
top

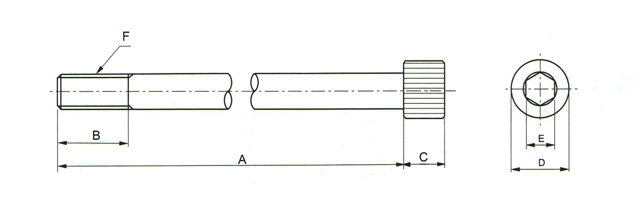

Dimensions - top



Series * = Number of Modular
Valves in Stack
Number of Bolts A

B

C

D

E

F

MBK-06-*-2 1 6 5.38 (137) 1.88 (48) 0.5 (13) 0.75 (19) 0.38 (10) 1/2-13 UNC-2B
2 6 8.88 (256)
3 6 12.13 (308)
