MODULAR BOLT KITS

MBK-02 &03 SERIES


The mounting bolt kits for the modular valve series MBK-02 and MBK-03 sizes consist of four (4) each of threaded rods and nuts. The lengths are sized to mount from one (1) to four (4) Northman Fluid Power modular valves between a Northman directional control valve and a subplate or manifold.









  Quick Links
Model Code
Dimensions

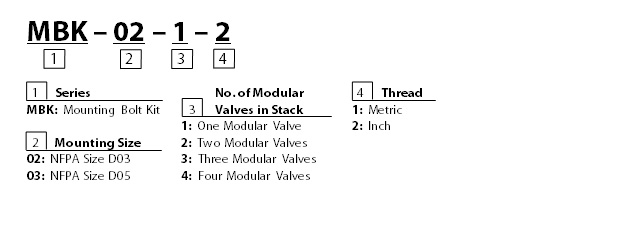

Model Code - top





Dimensions - top








Series * = Number of Modular
Valves in Stack		 Number of Bolts and Nuts A
Total Length
 		 B
Thread Length
 		 C
 		 D
 		 E
 		 F
 		 G
 		 A - C
Bolt Length

MBK-02-*-1 1 4 3.7 (94) 0.35 (9) 0.35 (9) 0.59 (15) 0.16 (4) 0.33 (8.5) M5 x 0.88P 3.35 (85)
2 5.27(134) 4.92 (125)
3 6.85 (174) 6.50 (165)
4 8.42 (214) 8.07 (205)
MBK-02-*-2 1 4 3.7 (94) 0.35 (9) 0.35 (9) 0.59 (15) 0.16 (4) 0.33 (8.5) #10 – 24 UNC 3.35 (85)
2 5.27(134) 4.92 (125)
3 6.85 (174) 6.50 (165)
4 8.42 (214) 8.07 (205)
MBK-03-*-1 1 4 4.17 (106) 0.47 (12) 0.47 (12) 0.87 (22) 0.20 (5) 0.39 (10) M6 x 1P 3.70 (94)
2 6.34 (161) 5.90 (149)
3 8.51 (216) 8.03 (204)
4 10.68 (271) 10.20 (259)
MBK-03-*-2 1 4 4.17 (106) 0.47 (12) 0.47 (12) 0.87 (22) 0.20 (5) 0.39 (10) 1/4 – 20 UNC 3.70 (94)
2 6.34 (161) 5.90 (149)
3 8.51 (216) 8.03 (204)
4 10.68 (271) 10.20 (259)
