M04 Subplate


	SOLENOID OPERATED DIRECTIONAL VALVE M04 SUBPLATE This single-station subplate for mounting an industrial hydraulic directional control valve conforms to the National Fluid Power Association (NFPA) D07 mounting pattern. It accepts Northman valves in the SW-G04 and HD-G04 Series. NPT and SAE Ports are available on the side or the bottom for Pressure, Tank, A and B connections.


	Quick Links Model Code Dimensions

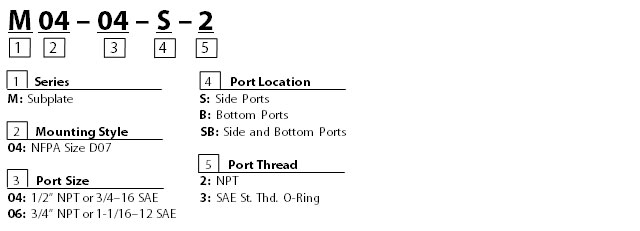

Model Code - top

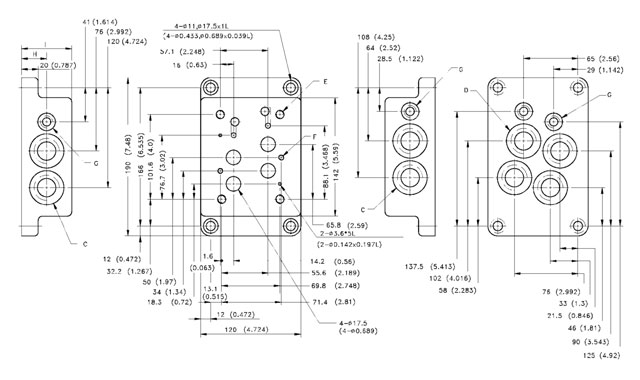

Dimensions - top M04 - ** - B - *

Dimensions- top

MODEL			PORT SIZE & INSTALLATION DIMENSIONS
MODEL			C	D	E	F	G	H	I
M04-04	-S	-2	1/2"NPT	-	3/8-16 UNC-2B	1/4-20 UNC-2B	1/4" NPT	-	36 (1.417)
	-S	-3	3/4 - 16 SAE	-	3/8-16 UNC-2B	1/4-20 UNC-2B	7/16 - 20 SAE	-	36 (1.417)
	-B	-2	-	1/2"NPT	3/8-16 UNC-2B	1/4-20 UNC-2B	1/4" NPT	30 (1.181)	60 (2.362)
	-B	-3	-	3/4 - 16 SAE	3/8-16 UNC-2B	1/4-20 UNC-2B	7/16 - 20 SAE	30 (1.181)	60 (2.362)
	-SB	-2	1/2"NPT	1/2"NPT	3/8-16 UNC-2B	1/4-20 UNC-2B	1/4"NPT	30 (1.181)	60 (2.362)
	-SB	-3	3/4 - 16 SAE	3/4 - 16 SAE	3/8-16 UNC-2B	1/4-20 UNC-2B	7/16 - 20 SAE	30 (1.181)	60 (2.362)

MODEL			PORT SIZE & INSTALLATION DIMENSIONS
MODEL			C	D	E	F	G	H	I
M04-06	-S	-2	3/4"NPT	-	3/8-16 UNC-2B	1/4-20 UNC-2B	1/4" NPT	-	36 (1.417)
	-S	-3	1-1/16 - 12 SAE	-	3/8-16 UNC-2B	1/4-20 UNC-2B	7/16 - 20 SAE	-	36 (1.417)
	-B	-2	-	3/4"NPT	3/8-16 UNC-2B	1/4-20 UNC-2B	1/4" NPT	30 (1.181)	60 (2.362)
	-B	-3	-	1-1/16 - 12 SAE	3/8-16 UNC-2B	1/4-20 UNC-2B	7/16 - 20 SAE	30 (1.181)	60 (2.362)
	-SB	-2	3/4"NPT	3/4"NPT	3/8-16 UNC-2B	1/4-20 UNC-2B	1/4"NPT	30 (1.181)	60 (2.362)
	-SB	-3	1-1/16 - 12 SAE	1-1/16 - 12 SAE	3/8-16 UNC-2B	1/4-20 UNC-2B	7/16 - 20 SAE	30 (1.181)	60 (2.362)
