LOW NOISE TYPE SOLENOID CONTROLLED PILOT OPERATED RELIEF VALVE

HSRF-G SERIES

• HSRF-G valve is the combination of solenoid operated directional control valve and a HRF-G relief valve in one integrated body to provide a wide variety of pressure control possibilities. Solenoid control permits convenient electrical selection of system pressures. Selection for pressure or vent, either of two pressures, or two pressures and vent, or one of three pressures can be achieved by proper selection of the valves listed below.
• Special internal passage design keeps flow noise to a minimum.

















  Quick Links
Model Code
Specifications
Dimensions

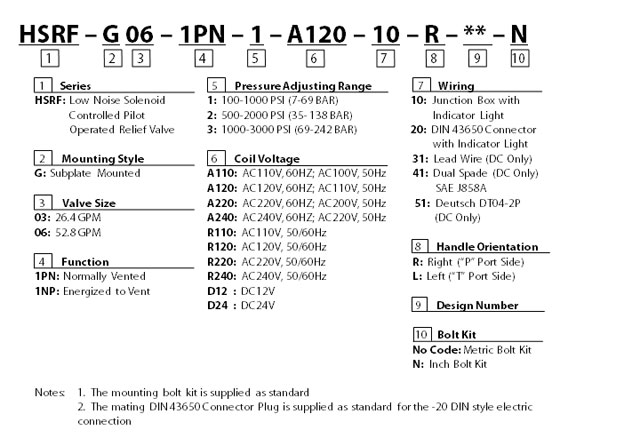

Model Code -
top

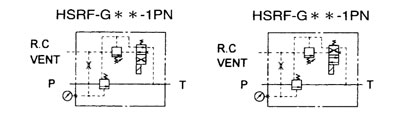

Symbols - top





SPECIFICATIONS - top


MODEL MAX. PRESSURE MAX. FLOW MOUNTING BOLTS
BAR(PSI) LPM (GPM) METER (INCH)
HSRF-G03-* 242 (3500) 100 (26.4 ) M12x40Lx4 (1/2"x1-3/5")
HSRF-G06-* 200 (52.8 ) M16x50Lx4 (5/8"x2")

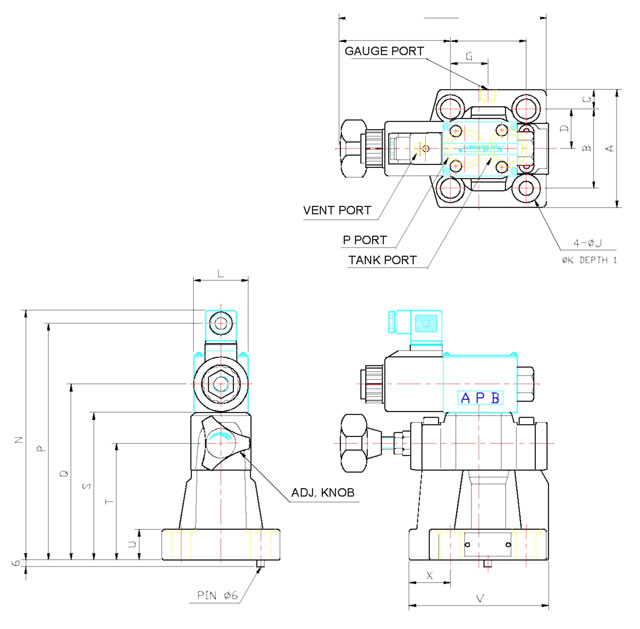

Dimensions - top UNIT: mm(inch)


HSRF-G03/06/-1PN/1NP-R



MODEL A B C D E F G H J
HSRF-03 76(3) 53.8(2.12) 11.1(0.44) 26.9(1.06) 53.8(2.11) 113.5(4.47) 27(1.06) 171(6.73) 13.5(0.53)
HSRF-06 104(4.09) 70(2.76) 17(0.67) 35(1.38) 66.7(2.63) 98.8(3.89) 33.7(1.33) 171(6.73) 17.5(0.69)
MODEL K L N P Q S T U V
HSRF-03 21(0.83) 48(1.89) 220.5(8.7) 206.8(8.1) 157(6.18) 132(5.2) 104(4.09) 22(0.86) 106(4.17)
HSRF-06 25(0.98) 48(1.89) 220.5(8.7) 206.8(8.1) 157(6.18) 132(5.2) 104(4.09) 27(1.06) 123(4.84)
HSRF-10 32(1.26) 48(1.89) 235(9.25) 220(8.66) 172(6.77) 146(5.75) 120(4.72) 37(1.46) 152(5.98)


MODEL X SUBPLATE TYPE
HSRF-G03 26(1.02) MF-04
HSRF-G06 36.5(1.44) MF-06
