LOW NOISE PILOT OPERATED RELIEF VALVE

FEATURES

• HRF series relief valve is designed on the theory of differential pressure created by flow across the orifice of the balance piston. This differential pressure acts to open the piston against the spring, permitting enough fluid vented to tank at the set pressure.
• Piston moves smoothly, and controlled by pilot pressure, provides stable pressure control and good repeatability.
• Special internal passage design keeps flow noise to a minimum.















  Quick Links
Model Code
Specifications
Dimensions

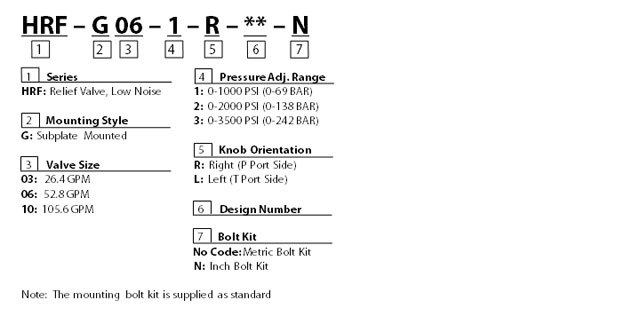

Model Code -
top

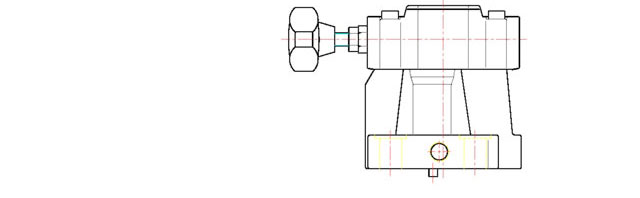

Symbols - top




Specifications - top

MODEL MAX. PRESSURE MAX. FLOW MOUNTING BOLTS
BAR (PSI) LPM (GPM) METER (INCH)
HRF-G03-*-* 242 (3500) 100 (26.4 ) M12x40Lx4(1/2"x1-3/5")
HRF-G06-*-* 200 ( 52.8 ) M16x50Lx4(5/8"x2")
HRF-G10-*-* 400 (105.6) M20x60Lx4(3/4"x2-2/5")

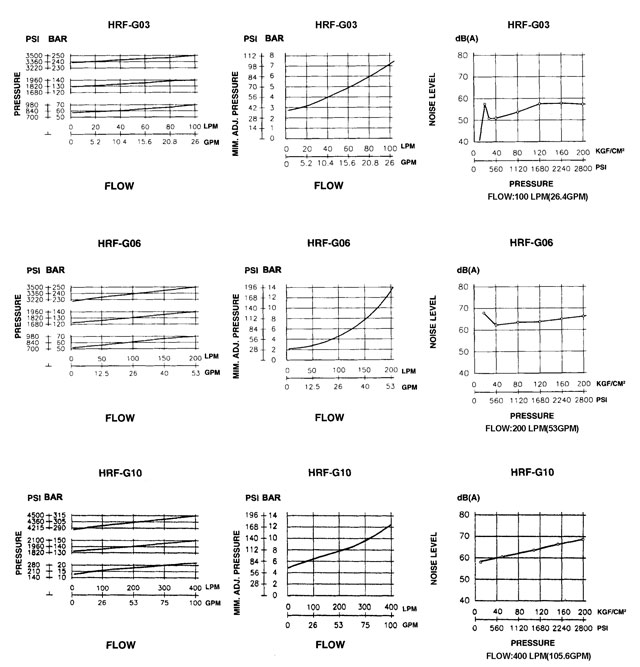

PERFORMANCE CURVES - top

TEST CONDITIONS
Viscosity: 35 cSt (175 SSU) Temperature: 50° C (122° F)

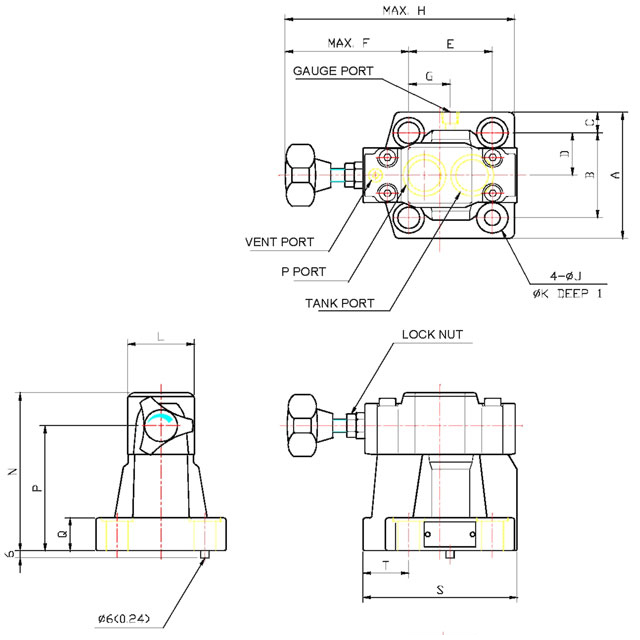

Dimensions - top UNIT: mm(inch)

HRF-G03/G06/G10-R




HRF-G03/G06/G10-L


MODEL A B C D E F G H J
HRF-G03 76(3) 53.8(2.12) 11.1(0.44) 26.9(1.06) 53.8(2.11) 113.5(4.47) 27(1.06) 171(6.73) 13.5(0.53)
HRF-G06 104(4.09) 70(2.76) 17(0.67) 35(1.38) 66.7(2.63) 98.8(3.89) 33.7(1.33) 171(6.73) 17.5(0.69)
HRF-G10 120(4.72) 82.6(3.25) 18.7(0.74) 41.3(1.63) 88.9(3.5) 89(3.35) 44.9(1.77) 219(8.62) 21.5(0.85)
MODEL K L N P Q S T SUBPLATE TYPE

HRF-G03 21(0.83) 51(2.01) 132(5.2) 104(4.09) 22(0.86) 106(4.17) 26(1.02) MF-04
HRF-G06 25(0.98) 51(2.01) 132(5.2) 104(4.09) 27(1.06) 123(4.84) 36.5(1.44) MF-06
HRF-G10 32(1.26) 65(2.56) 167(6.52) 135(5.32) 33.5(1.32) 155(6.1) 47(1.85) MF-10
