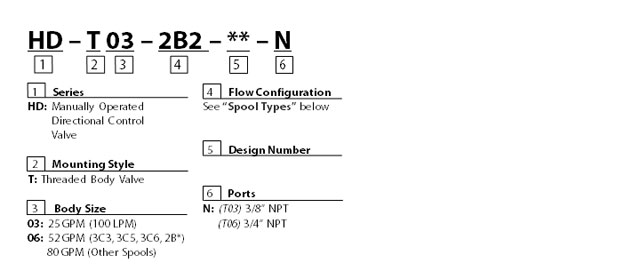

HD-T03/T06 MANUALLY OPERATED DIRECTIONAL VALVE This industrial hydraulic four-way valve is actuated manually with the hand-lever. It may be ordered as a 2-position or a 3-position valve. Other options include a spring-offset design, or spring-centered or detented. The valve is available in two body sizes with ports either 3/8” NPT or 3/4” NPT.       Quick Links Model Code Specifications Dimensions     Model Code - top SPECIFICATIONS - top MODEL CODE MAX. FLOW MAX. PRESSURE LPM (GPM) BAR (PSI) HD-T03-*C*-10 100 (25) 207 (3000) HD-T03-2D*-10 100 (25) 207 (3000) HD-T03-2B*-10 100 (25) 207 (3000) HD-T06-*C*-10 300 (80) / * 200 (52) 207 (3000) HD-T06-2D*-10 300 (80) 207 (3000) HD-T06-2B*-10 200 (52) 207 (3000) * IS THE RATING FOR 3C3, 3C5, 3C6 SPOOL TYPES - top   HD Series Manually-Operated Directional Control Valves Valve Type Spool Symbol 4 Way 3 Position Spring Centered 3C2 3C3 3C4 3C6 4-Way  2-Position  Spring Offset  2B2 Closed Crossover 2B3 Open Crossover  4 Way 3 Position Detent 3D2   3D3 3D4  3D6 4 Way 2 Position Detent  2D2 Closed Crossover  2D3 Open Crossover HD-T03 PRESSURE DROP CURVES - top TEST FLUID VISCOSITY : 35 cSt (175 SSU) TEST TEMPERATURE: 50C(122F)   HD-T03 PERFORMANCE CHART SPOOL PRESSURE   DROP LINE   NUMBER TYPE P-A  B-T P-B A-T P-T C2 4 5 4 5 - C3 6 6 6 6 6 C4 4 7 4 7 - C40 4 5 4 5 - C 5 6 5 4 6 2 C6 5 5 5 5 1 C60 5 5 5 5 1 HD-T06 PRESSURE DROP CURVES TEST FLUID VISCOSITY : 35 cSt (175 SSU) TEST TEMPERATURE: 50C(122F) HD-T06 PERFORMANCE CHART SPOOL PRESSURE   DROP LINE   NUMBER TYPE P-A  B-T P-B A-T P-T C2 2 2 2 2 - C3 3 2 3 2 2 C4 2 3 2 2 - C40 2 2 2 2 - C5 3 2 2 2 - C6 3 2 3 2 1 C60 3 2 3 2 1 Dimensions - top UNIT: mm(inch) HD-T03/06 MODEL A B C D E F G H J K L WEIGHT                         KGS LBS HD-T03 SERIES 174 (6.85) 82 (3.23) 39 (1.53) 74 (2.91) 68 (2.68) 50 (1.96) 33 (1.30) M10 (3/8") 68 (0.27) 58 (2.29) 92 (3.62) 4.0 8.9 HD-T06 SERIES 258 (10.16) 99 (3.90) 41 (1.61) 130 (5.12) 120 (4.72) 98 (3.86) 66 (2.60) M19 (3/4") 11 (0.43) 100 (3.94) 125 (4.92) 11.5 25.8
