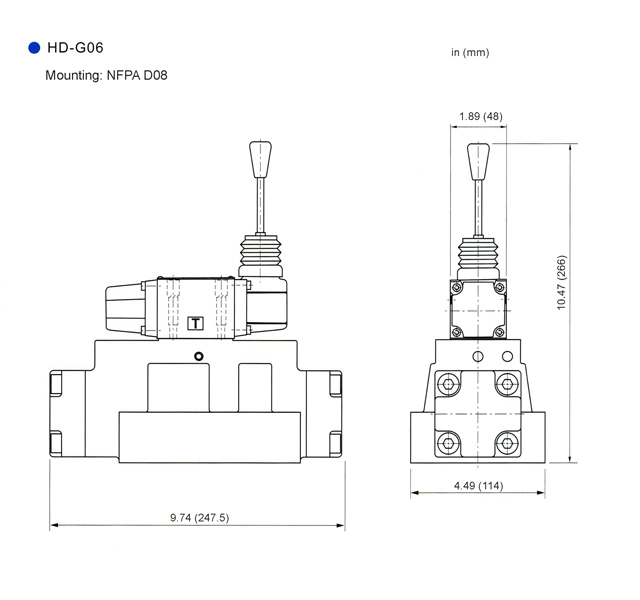

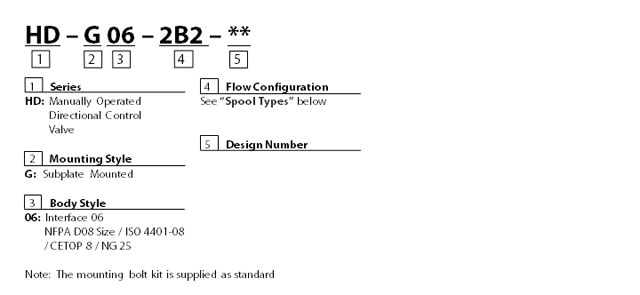

HD-G06 MANUALLY OPERATED DIRECTIONAL VALVE This industrial hydraulic four-way valve is actuated manually with the hand-lever. It may be ordered as a 2-position or a 3-position valve. Other options include a spring-offset or spring-centered design. The valve mounts on the M06 Subplate series. Note: Modular pressure and flow control valves in the M**-06 series that mount under this directional control are available separately to make a convenient control valve package.       Quick Links Model Code Specifications Dimensions     Model Code - top   SPECIFICATIONS - top SPOOL TYPES - top   HD Series Manually-Operated Directional Control Valves Valve Type Spool Symbol 4 Way 3 Position Spring Centered 3C2 3C3 3C4 3C6 4-Way  2-Position  Spring Offset  2B2 Closed Crossover 2B3 Open Crossover  4 Way 3 Position Detent 3D2   3D3 3D4  3D6 4 Way 2 Position Detent  2D2 Closed Crossover  2D3 Open Crossover Dimensions - top UNIT: mm(inch) ISO 4401-AB-03-4-A HD-G06***-10
