HD-G03
MANUALLY OPERATED DIRECTIONAL VALVE



This industrial hydraulic four-way valve is actuated manually with the hand-lever. It may be ordered as a 2-position or a 3-position valve. Other options include a spring-offset design, or spring-centered or detented.

The valve mounts on the M03 Subplate series.

Note: Modular pressure and flow control valves in the M**-03 series that mount under this directional control are available separately to make a convenient control valve package.













  Quick Links
Model Code
Specifications
Dimensions

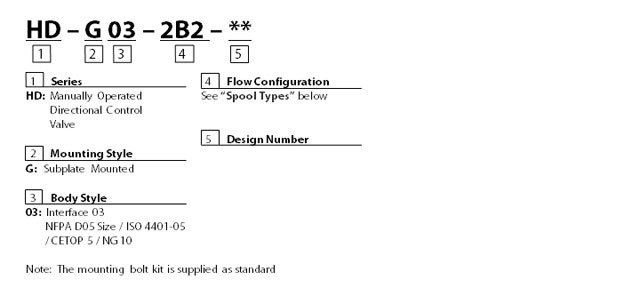

Model Code -
top




SPECIFICATIONS - top


MODEL CODE MAX. FLOW MAX. PRESSURE
  LPM (GPM) BAR (PSI)
HD-G03-***-10 100 (26.4) 207 (3000)


SPOOL TYPES - top


HD Series
Manually-Operated Directional Control Valves

Valve Type Spool Symbol
4 Way
3 Position
Spring Centered


3C2

3C3
3C4
3C6
4-Way
2-Position
Spring Offset

2B2
Closed
Crossover
2B3
Open
Crossover
4 Way
3 Position
Detent


3D2


3D3
3D


3D
6

4 Way
2 Position
Detent

2D2
Closed
Crossover
2D3
Open
Crossover






Dimensions - top UNIT: mm(inch) ISO 4401-AB-03-4-A

HD-G03-***-**
