RIGHT ANGLE CHECK VALVE
This subplate mounted check valve
is designed to allow free flow of oil in a hydraulic system in
one direction and block flow in the reverse direction. It mounts
on the CVM-** series subplate, also shown on this page.
|
|
 |
|
 |
|
|
|
|

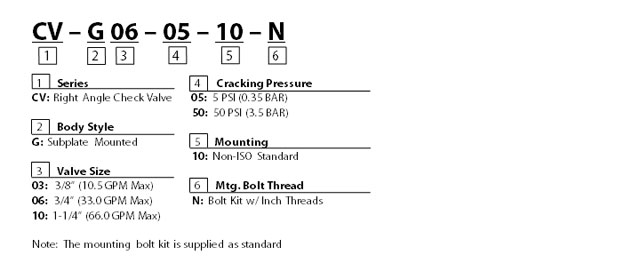

Model Code -
top
 |
Symbols -
top
SPECIFICATIONS -
top
|
MODEL |
RATE FLOW |
MAX. OPERATED
PRESSURE |
CRACKING PRESSURE |
| |
LPM(GPM) |
BAR (PSI) |
BAR (PSI) |
| CV-G03 |
40(10.5) |
|
05: 0.35(5) |
| CV-G06 |
125(33.0) |
245 (3550) |
50: 3.5(50) |
| CV-G10 |
250(66.0) |
|
|
PERFORMANCE CURVES -
top
TEST FLUID VISCOSITY : 35 cSt (175 SSU)
TEST TEMPERATURE: 50C(122F)
|
Dimensions -
top |
UNIT: mm(inch) |
CV-G03/06/10-**-10
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
J |
| CV-G03 |
68 (2.68) |
47.6 (1.87) |
23.8 (0.94) |
47.6 (1.87) |
30.1 (1.19) |
12.7 (0.50) |
80 (3.15) |
60.3 (2.27) |
10 (0.39) |
| CV-G06 |
101 (3.98) |
65.2 (2.56) |
32.6 (1 28) |
68.2 (2.69) |
40.5 (1.59) |
22.2 (0.87) |
114 (4.49) |
80.9 (3.19) |
16.5 (0.65) |
| CV-G10 |
130 (5.12) |
92.1 (3.63) |
46.1 (1.81) |
71.4 (2.81) |
46.0 (1.81) |
20.6 (0.81) |
130 (5.12) |
92.1 (3.63) |
19 (0.75) |
| |
| MODEL |
K |
L |
N |
P |
Q |
BOLT |
WEIGHT |
| |
|
|
|
|
|
KGS |
LBS |
| CV-G03 |
70 (2.76) |
36 (1.42) |
46 (1.81) |
11 (0.43) |
17.5 (0.69) |
M10x50x4PCS (3/8"x2") x4PCS |
1.7 |
3.7 |
| CV-G06 |
81 (3.19) |
38 (1.49) |
54 (2.12) |
17.5 (0.69) |
26 (1.02) |
M16x55x4PCS (5/8"x2-1/2") x4PCS |
4.1 |
9.0 |
| CV-G10 |
100 (3.94) |
50 (1.97) |
67 (2.64) |
21.5 (0.85) |
30 (1.18) |
M20x75x4PCS (3/4"x3") x4PCS |
6.6 |
14.5 |
|
|
|
|
|
|
|
|
|
|
| MODEL |
R |
SUBPLATE |
|
|
|
|
|
|
| CV-G03 |
10.2 (0.405) |
CVM-03-10-2 |
|
|
|
|
|
|
| CV-G06 |
16.45 (0.65) |
CVM-06-10-2 |
|
|
|
|
|
|
| CV-G10 |
18.95 (0.745) |
CVM-10-10-2 |
|
|
|
|
|
|
|
Dimensions -
top |
UNIT: mm(inch) |
| CV-G03/G06-**-20 |
|
G03: ISO 5781-AG-06-2-A |
| G06:
ISO 5781-AH-08-2-A |
|
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
| CV-G03 |
90 (3.54) |
66.7 (2.63) |
11.7 (0.46) |
72 (2.83) |
42.9 (1.69) |
17.5 (0.69) |
72.5 (2.85) |
31 (1.22) |
| CV-G06 |
102 (4.02) |
79.4 (3.13) |
11.3 (0.44) |
93 (3.66) |
60.3 (2.37) |
21.4 (0.84) |
84 (3.31) |
36 (1.42) |
|
Dimensions -
top |
UNIT: mm(inch) |
|
