Double Fixed Displacement 4535V
|
||
 |
 |
 |
 |
|
 |
||
 |
 |
 |
 |
|
|
Quick Links
Model Code Performance Curves Dimensions |
||
 |
 |
|
|
||||||||||||||||||
|
 Model Code - top  |
Performance Curves -
top

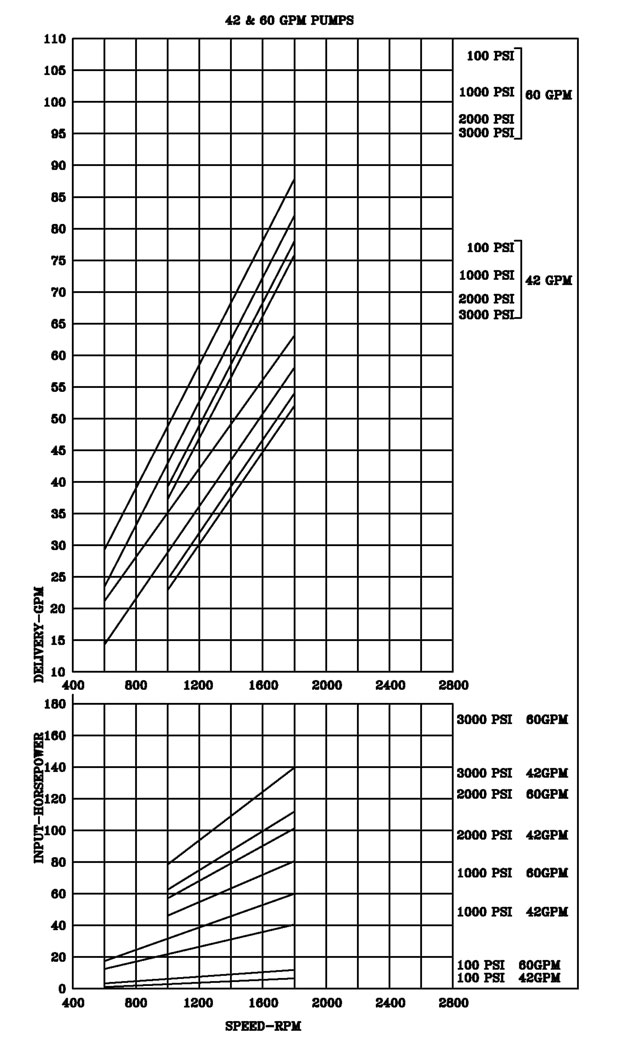

4535V Double Pump (Ring Size -42 & 60 GPM)
SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.
Performance Curves -
top

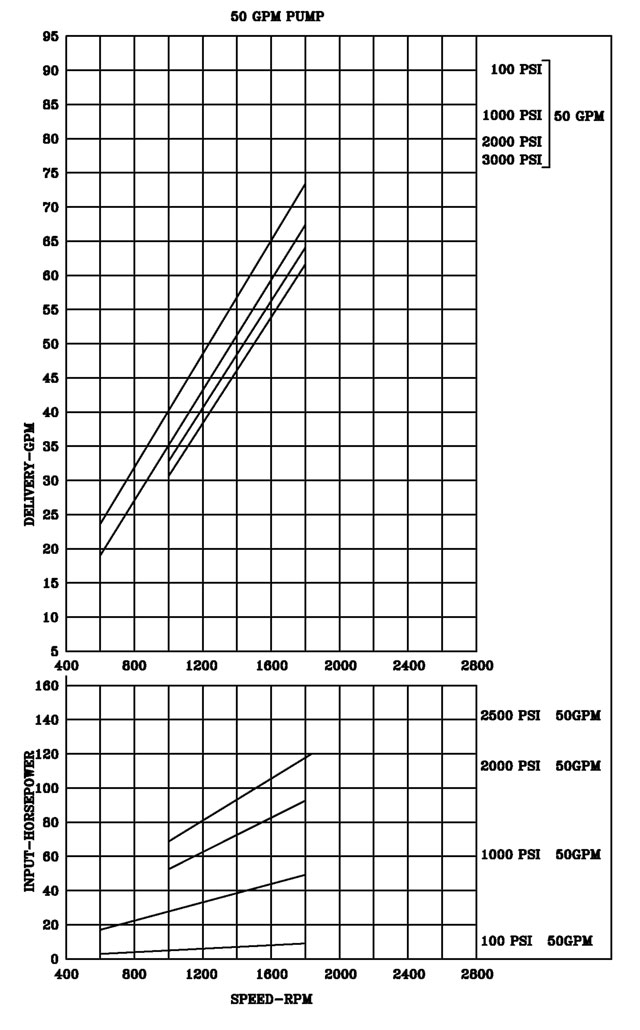

4535V Double Pump (Ring Size - 50 GPM)
SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.
Performance Curves -
top

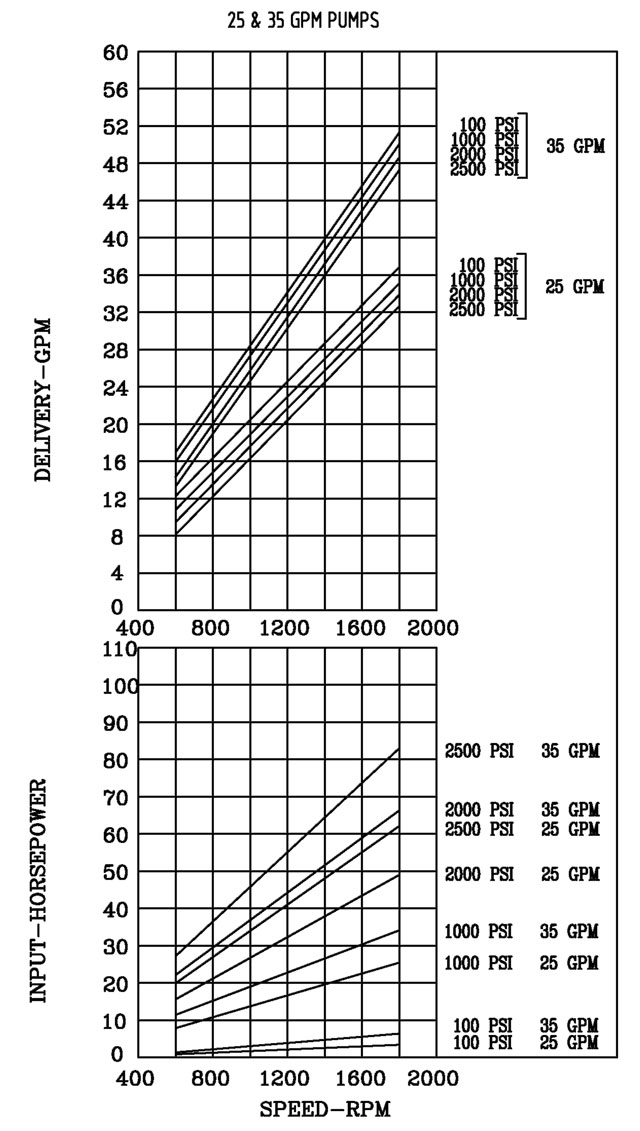

4535V Double Pump (Ring Size -25 & 35 GPM)
SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.
Performance Curves -
top

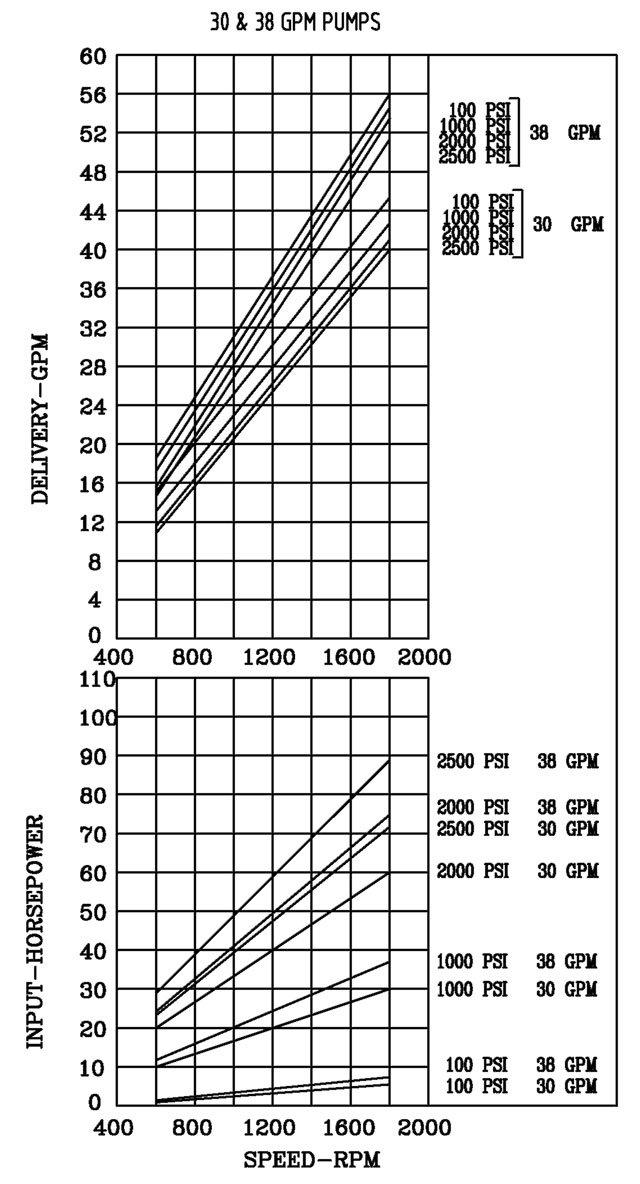

4535V Double Pump (Ring Size -30 & 38 GPM)
SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.
Dimensions -
top

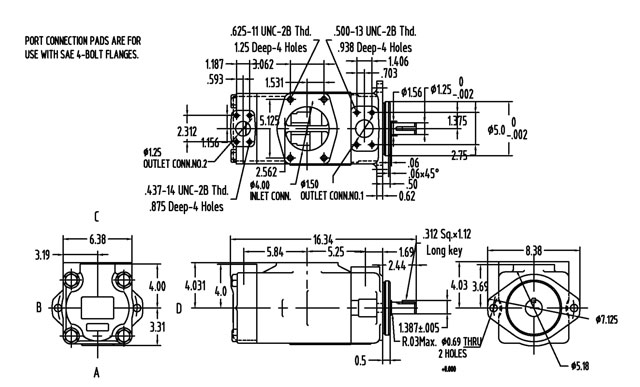

4535V Double Pump
Dimensions in inches
Code 1 3/16 Straight Key Code 11 14T 12/24 Spline Code 86 HD Straight Key
