Double Fixed Displacement

4535V

The Northman 4535V Series double pump is a fixed displacement, hydraulic balanced vane pump. This high performance intravane pump for industrial applications features high pressure capability with 12 vanes for low noise. The available flow ratings for the 4535V series are from 42 GPM to 60 GPM at 1200 RPM on the shaft end and from 21 to 38 GPM at 1200 RPM on the cover end. Viton seals are standard. Standard rotation is right-hand (clockwise), with left-hand rotation (counterclockwise) available ("L" option). The flange mounting is the SAE "C" two-bolt standard. The outlet port may be oriented in any one of four positions.







  Quick Links

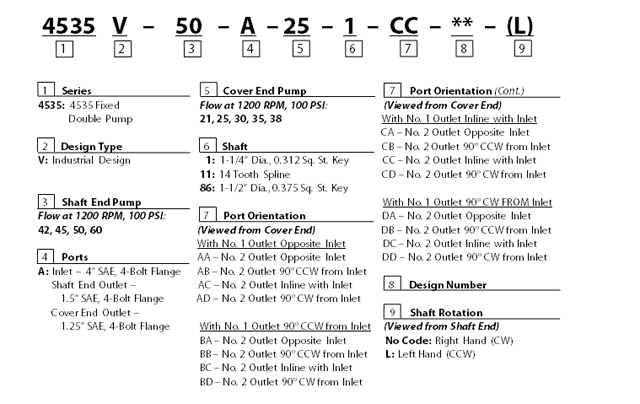

Model Code
Performance Curves
Dimensions



Symbol


Model Code - top







Performance Curves - top

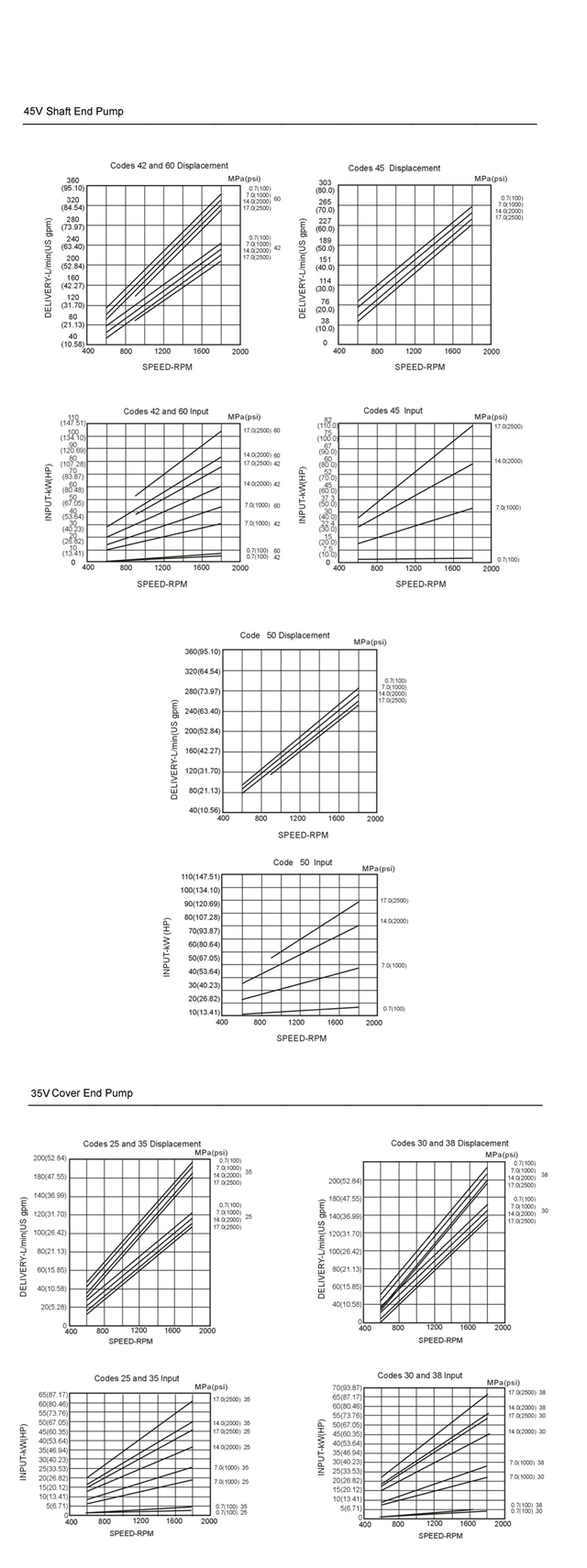

4535V Double Pump (Ring Size -42 & 60 GPM)

SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.


Specifications - top

Shaft End Pump
Flow Code
GPM @ 1200 RPM & 100 PSI
Displacement
in³/r (cm³/r)
Max. Pressure
PSI (BAR)
P/N Example
4535V-50-A-30-1-CC-20
("50" = Shaft End Pump)

42

8.42 (138)

2500 (172)

45

8.66 (142)

50

9.89 (162)

60

11.78 (193)

Cover End Pump
Flow Code
GPM @ 1200 RPM & 100 PSI
Displacement
in³/r (cm³/r)
Max. Pressure
PSI (BAR)
P/N Example
4535V-50-A-30-1-CC-20
("30" = Cover End Pump)

21

4.09 (67)

2500 (172)

25

4.94 (81)

30

5.92 (97)

35

6.83 (112)

38

7.38 (121)


Dimensions - top

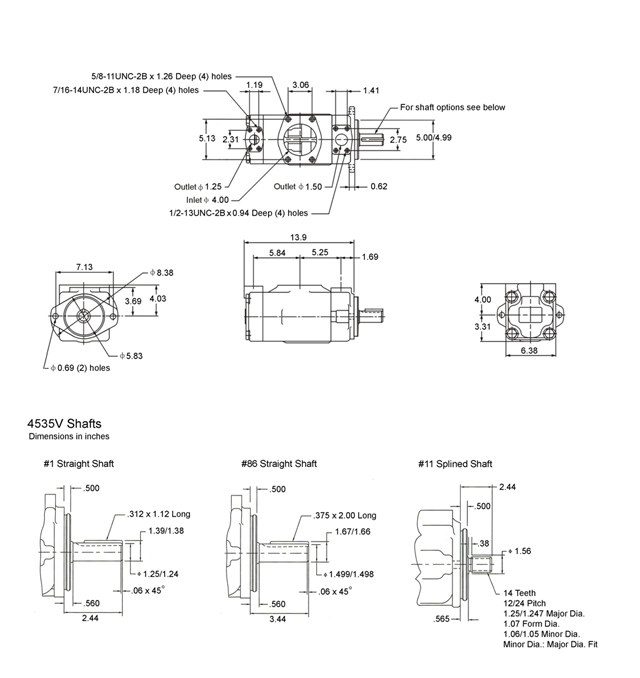

4535V Double Pump
Dimensions in inches
