Double Fixed Displacement

4520V




















  Quick Links
Model Code
Performance Curves
Dimensions

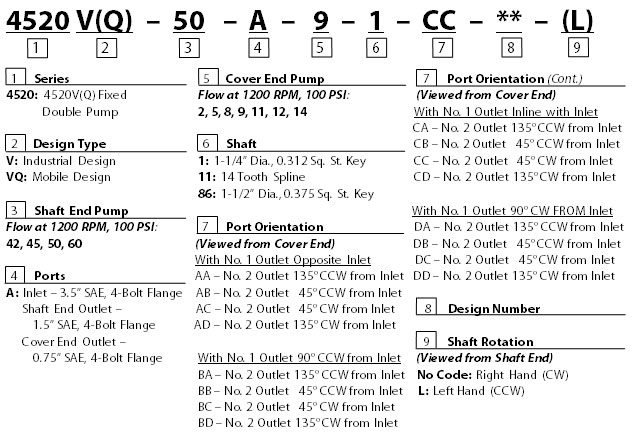

Model Code -
top








Performance Curves - top

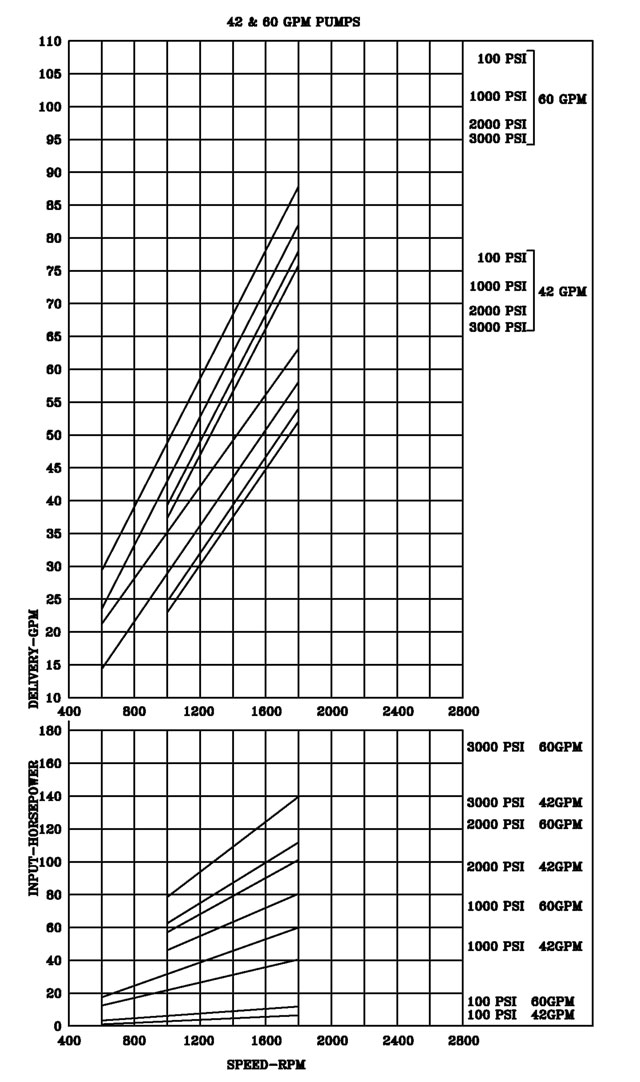

4520V Double Pump (Ring Size -42 & 60 GPM)

SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.


Performance Curves - top

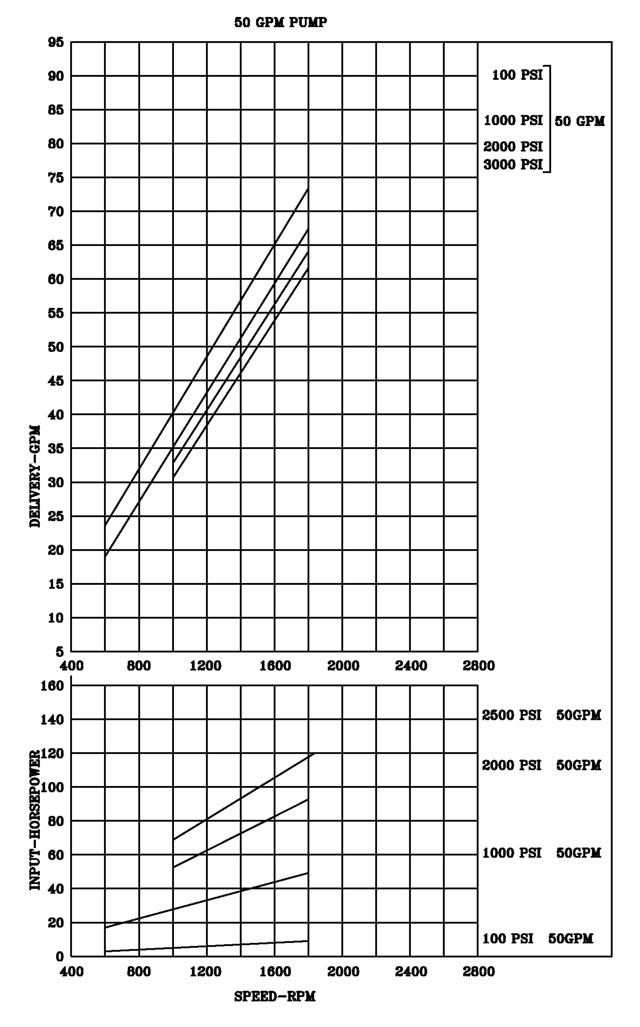

4520V Double Pump (Ring Size - 50 GPM)

SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.


Performance Curves - top

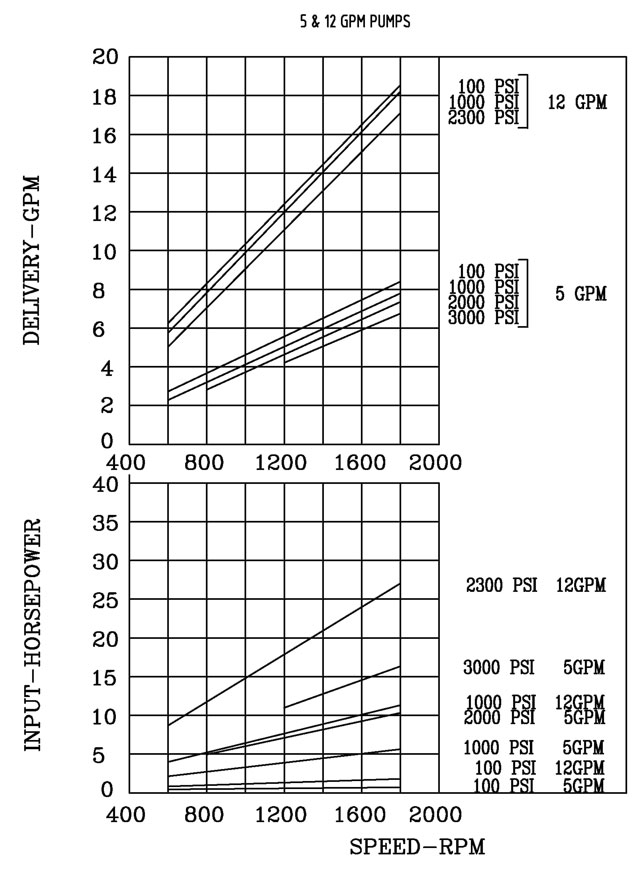

4520V Double Pump (Ring Size -5 & 12 GPM)

SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.


Performance Curves - top

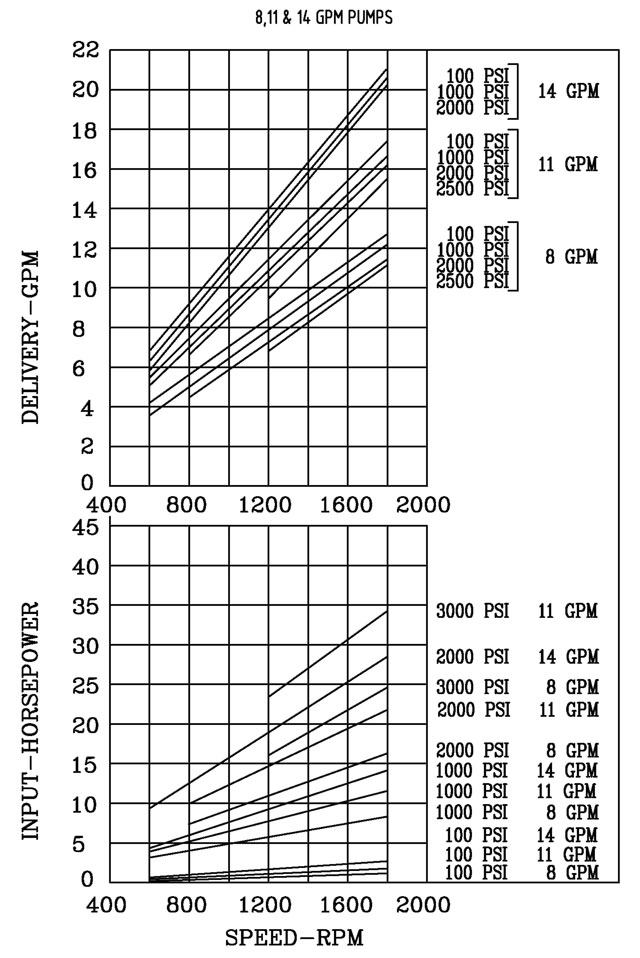

4520V Double Pump (Ring Size - 8, 11 & 14 GPM)

SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.


Dimensions - top

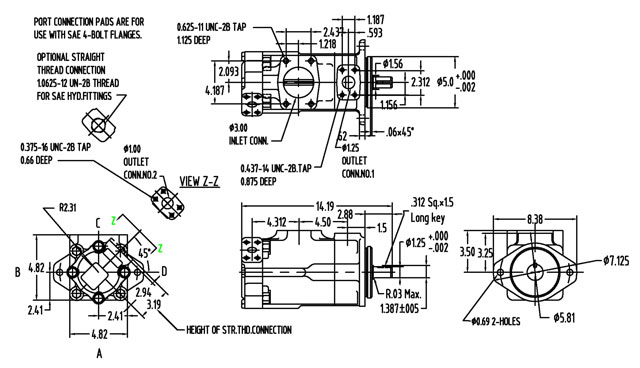

4520V Double Pump
Dimensions in inches

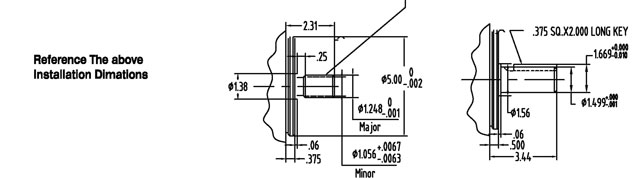

Code 1  3/16 Straight Key          Code 11  14T   12/24 Spline     Code 86   HD Straight Key
