Single Fixed Displacement

35VQ


The Northman 35VQ Series pump is a fixed displacement, hydraulic balanced vane pump. This high performance intravane pump features the 10 vane design for the high pressure and speed requirements of mobile applications. The available flow ratings for the 35VQ series are from 21 GPM to 38 GPM at 1200 RPM. Viton seals are standard. Standard rotation is right-hand (clockwise), with left-hand rotation (counterclockwise) available ("L" option). The flange mounting is the SAE "C" two-bolt standard. The outlet port may be oriented in any one of four positions.







  Quick Links
Model Code
Performance Curves
Dimensions





Symbol

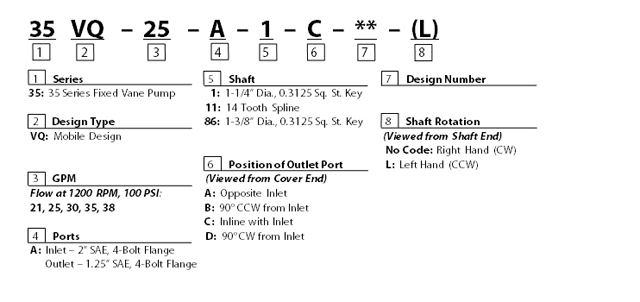

Model Code -
top

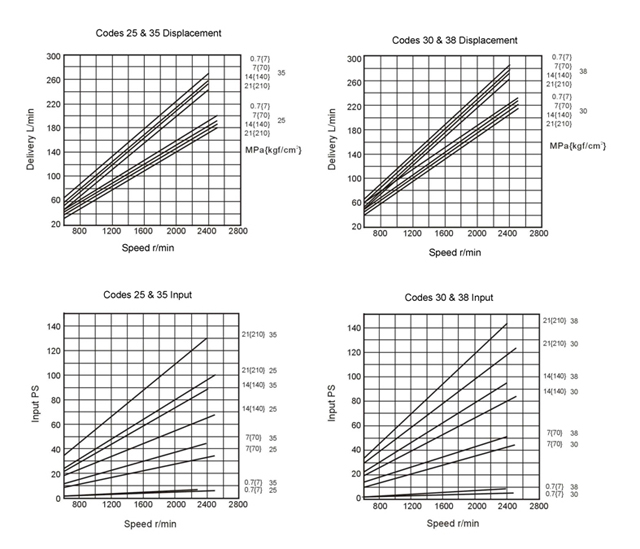

Performance Curves - top

35VQ Single Pump

SAE 10W Fluid at 120°F.
Pump Inlet at 0° hg.



Specifications - top

Based on Petroleum Oil: 120°F (49°C), Viscosity 150 SUS at 100°F (38°C), 0 Inlet PSI

Model
Flow Code
GPM @ 1200 RPM
& 100 PSI
Displacement
in³/r (cm³/r)
Max. Speed
RPM
Max. Pressure
PSI (BAR)
Weight
Lbs (Kg)

35VQ

21

3.90 (64)

2500

3000 (210)

50.0 (22.7)

25

4.83 (79.2)

30

5.80 (95)

35

6.65 (109)

2400

38

7.20 (118)




Dimensions - top

35VQ Single Pump
Dimensions in inches
